If n represents the actual number of deflections in a converted galvanometer of resistance G and shunt resistance S. Then the total current I when its figure of merit is K will be:

Multiple Choice Options

  • A KS(S+G)
  • B (G+S)nKS
  • C nKS(G+S)
  • D nK(G+S)S

Step-by-Step Verified Solution

According to the information, current through galvanometer = nK

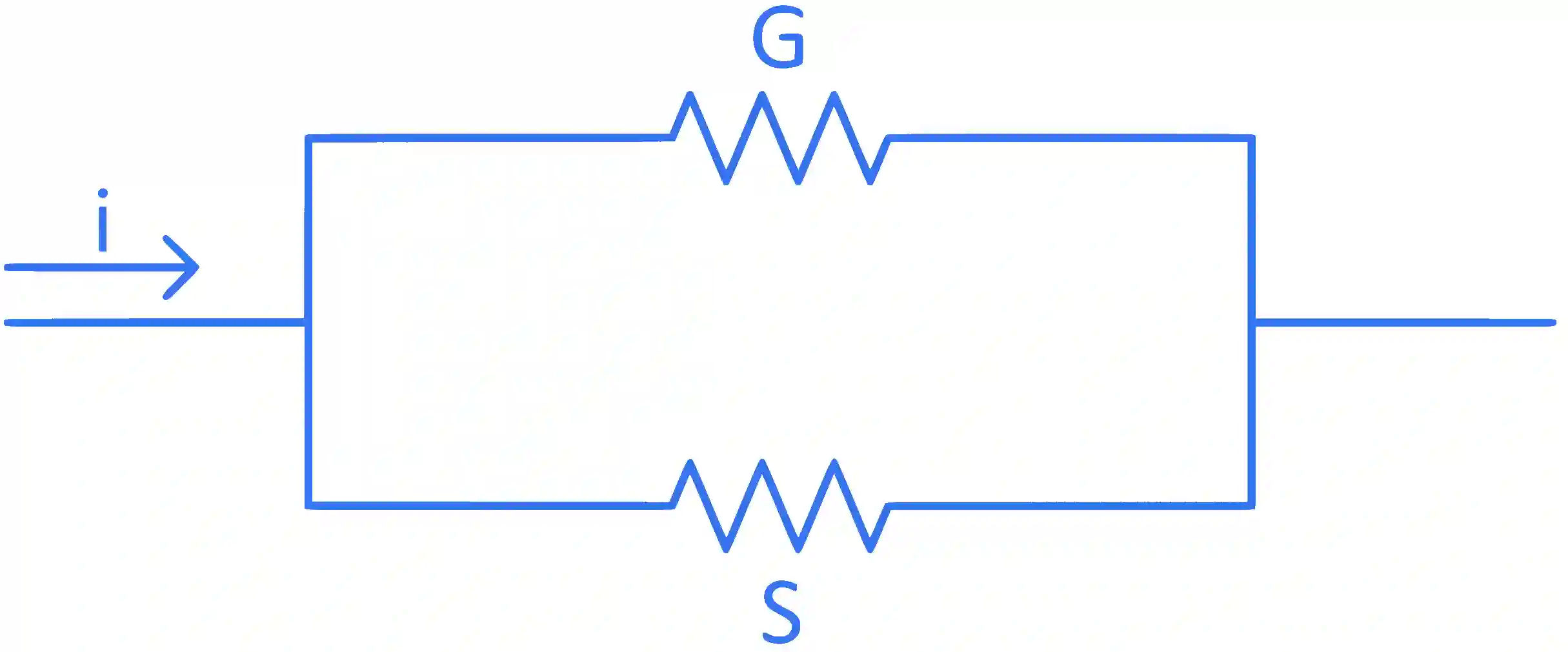

JEE Main 2022 (Online) 25th June Evening Shift Physics - Current Electricity Question 140 English Explanation

⇒SS+Gi=nK

⇒i=nK(S+G)S
