Eight copper wire of length $l$ and diameter $d$ are joined in parallel to form a single composite conductor of resistance $R$ . If a single copper wire of length $2 l$ have the same resistance $(R)$ then its diameter will be ____________ d.

Related Learning Resources & Exam Preparation

JEE Main PYQ Question Bank

Browse year-wise authentic previous years' questions with solutions

Authentic CBT Mock Tests

Simulate official exam environment with live timer and percentile scoring

Accepted Answer

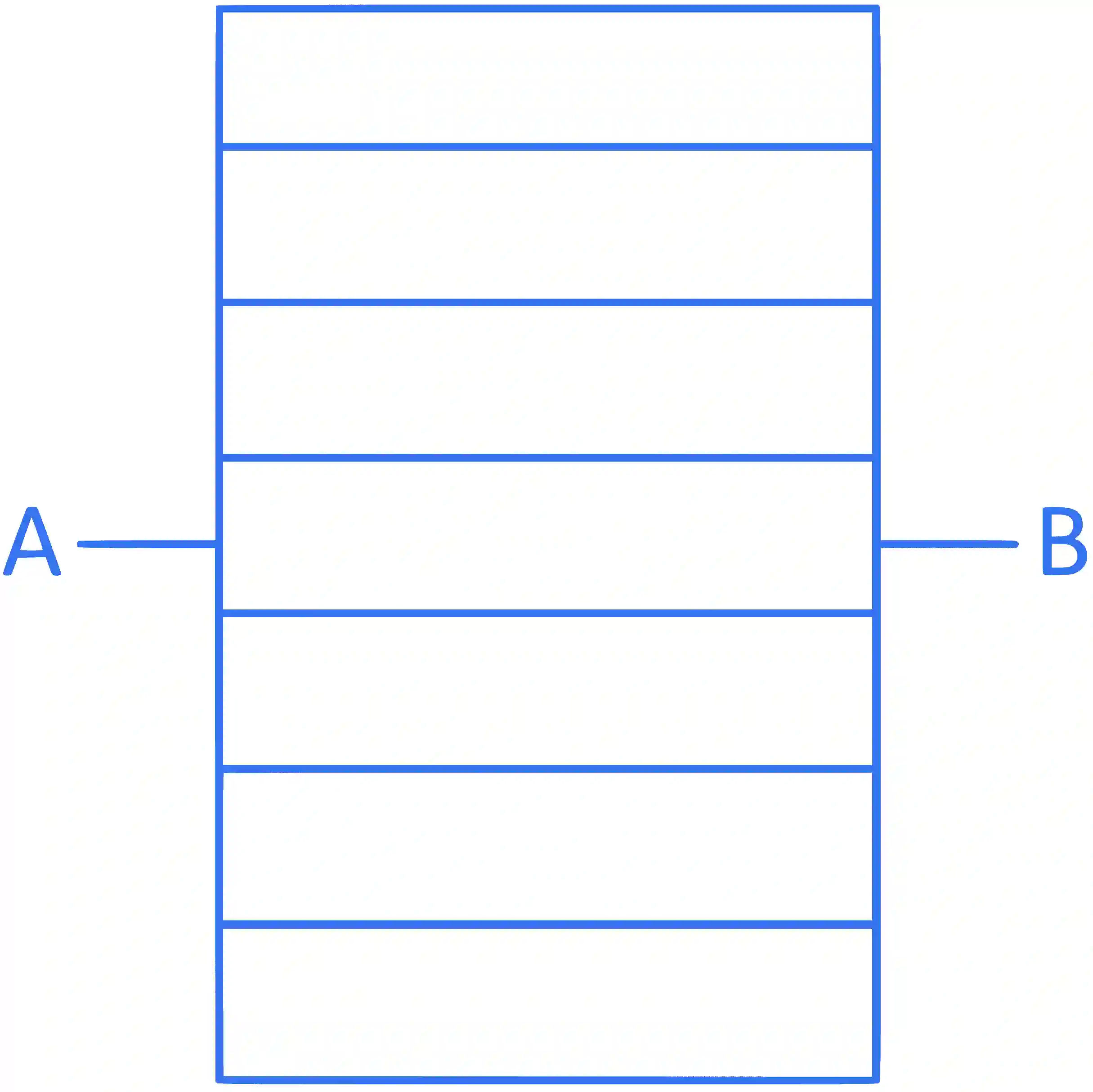

JEE Main 2022 (Online) 25th July Morning Shift Physics - Current Electricity Question 128 English Explanation

$R A B = R$

$R = \frac{1}{8}$ (Resistance of one wire)

$= \frac{1}{8} ρ \frac{l}{π \frac{d^{2}}{4}} = \frac{ρ l}{2 π d^{2}}$

Resistance of copper wire of length $2 l$ and diameter $x = R$

$ρ \frac{2 l}{π \frac{x^{2}}{4}} = R$

$\frac{8 ρ l}{π x^{2}} = \frac{ρ l}{2 π d^{2}}$

$16 d^{2} = x^{2}$

$x = 4 d$
