Question

Verified Solution • 2025–26 Session moderate

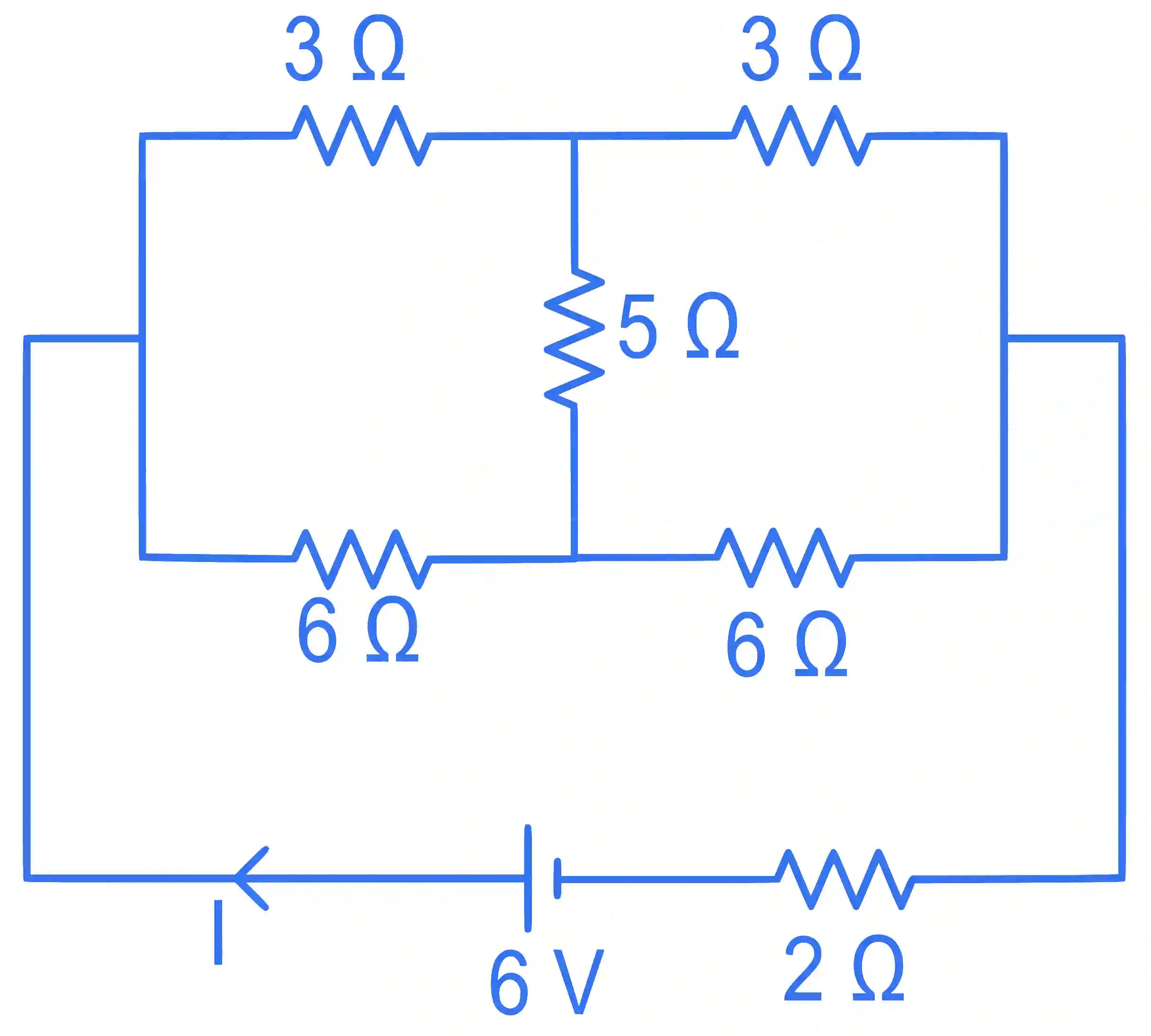

A battery of $6 \mathrm{~V}$ is connected to the circuit as shown below. The current I drawn from the battery is :

JEE Main 2022 (Online) 26th July Evening Shift Physics - Current Electricity Question 122 English

Accepted Answer

Balance wheatstone

$\Rightarrow {R_{eff}} = {{3 \times 6} \over {3 + 6}} \times 2 + 2$

$= 6\,\Omega$

$\Rightarrow I = {V \over R} = 1\,A$
