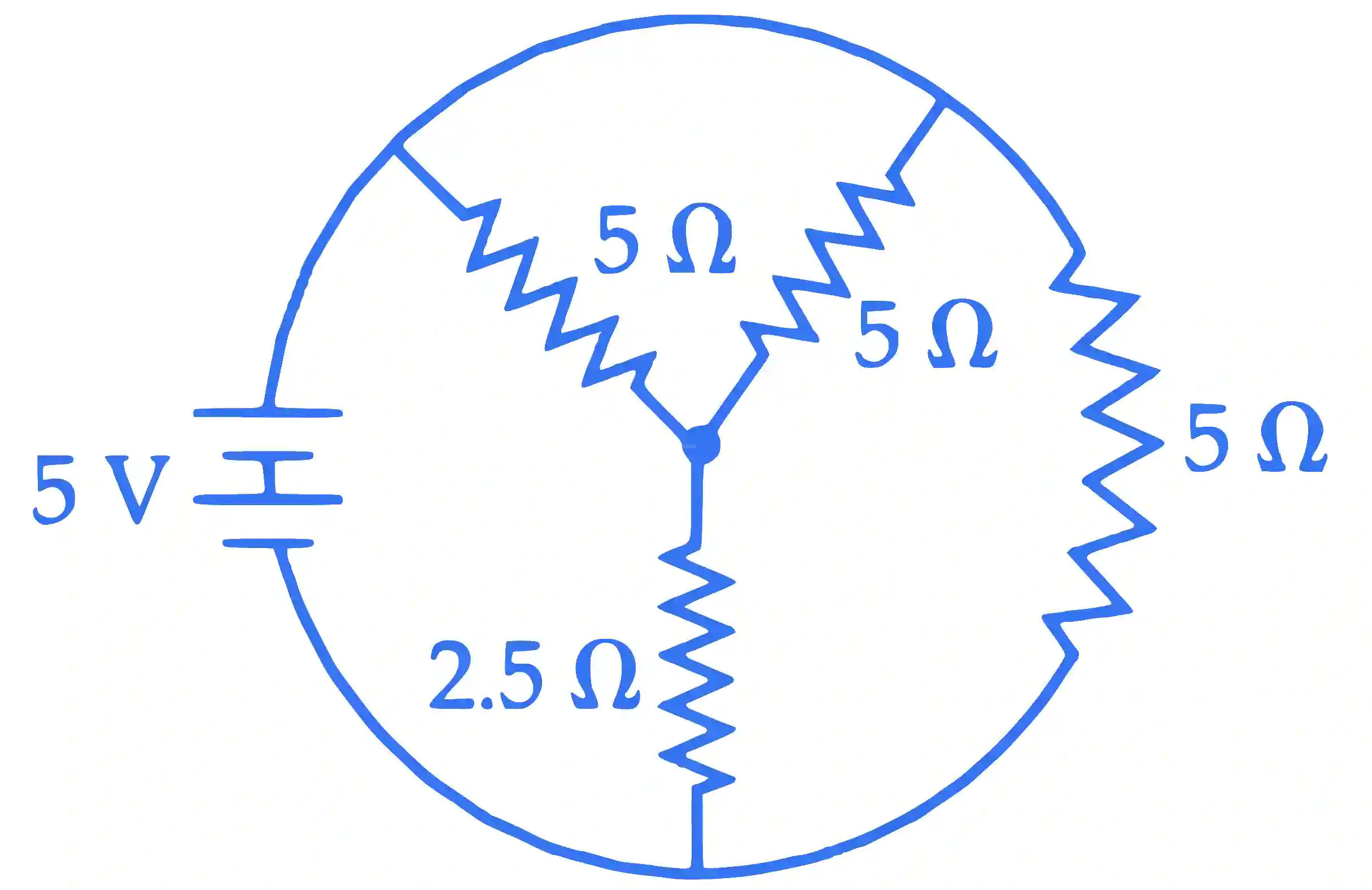

The total current supplied to the circuit as shown in figure by the 5 V battery is ____________ A.

JEE Main 2022 (Online) 25th June Morning Shift Physics - Current Electricity Question 138 English

Step-by-Step Verified Solution

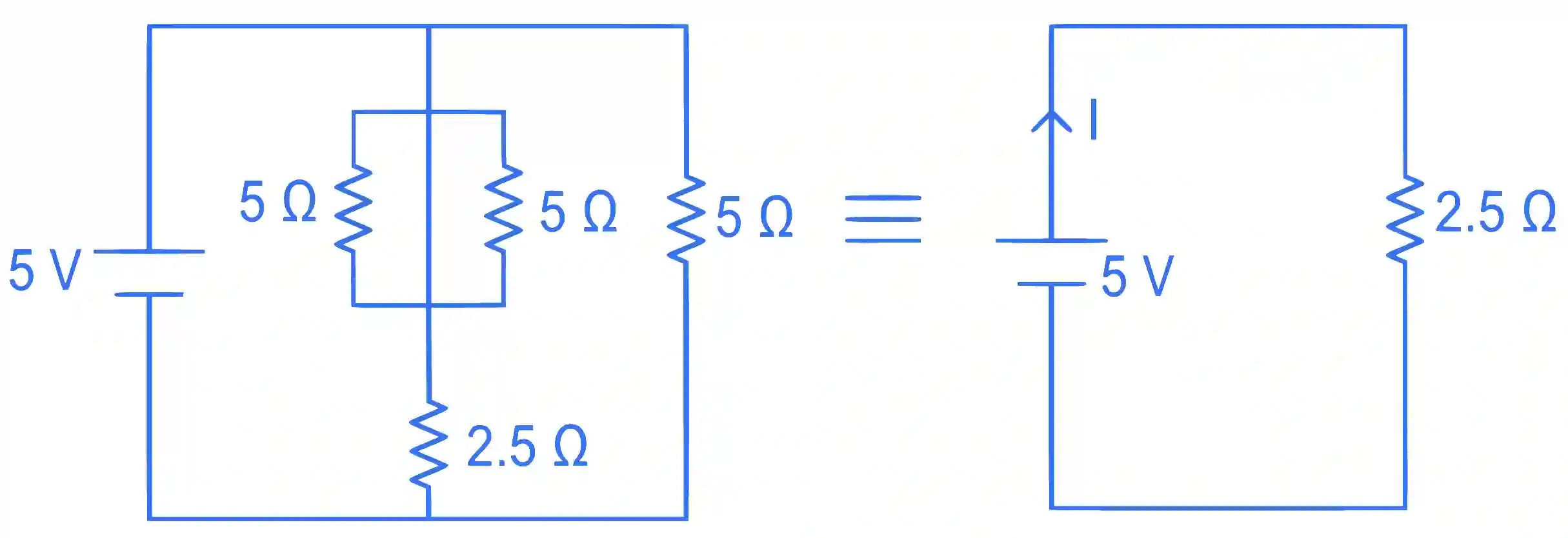

The equivalent circuit is

JEE Main 2022 (Online) 25th June Morning Shift Physics - Current Electricity Question 138 English Explanation

⇒I=52.5=2 A\Rightarrow I = {5 \over {2.5}} = 2\,A
