Question

Verified Solution • 2025–26 Session moderate

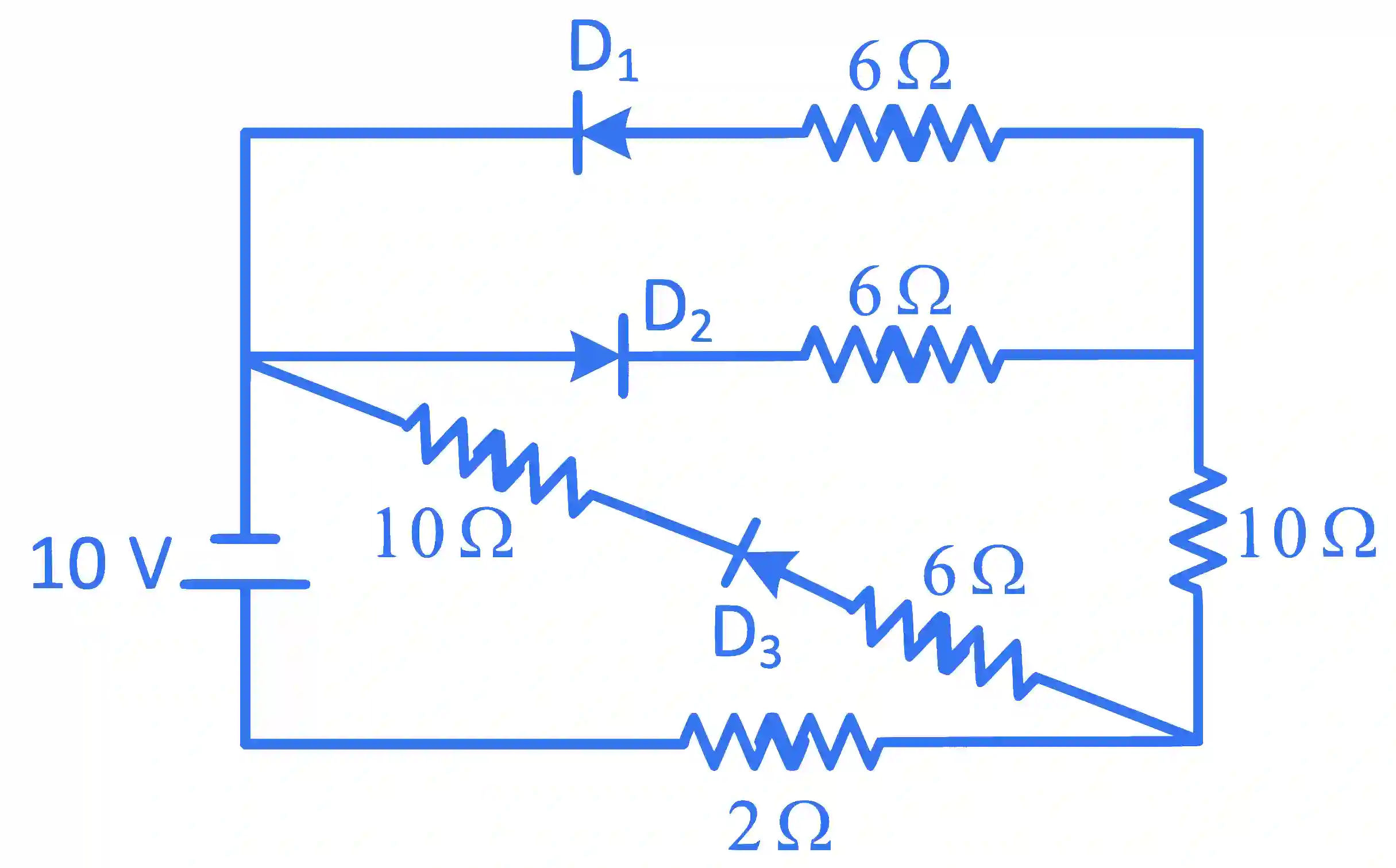

As per the given circuit, the value of current through the battery will be ____________ A.

JEE Main 2022 (Online) 26th June Morning Shift Physics - Semiconductor Question 76 English

Accepted Answer

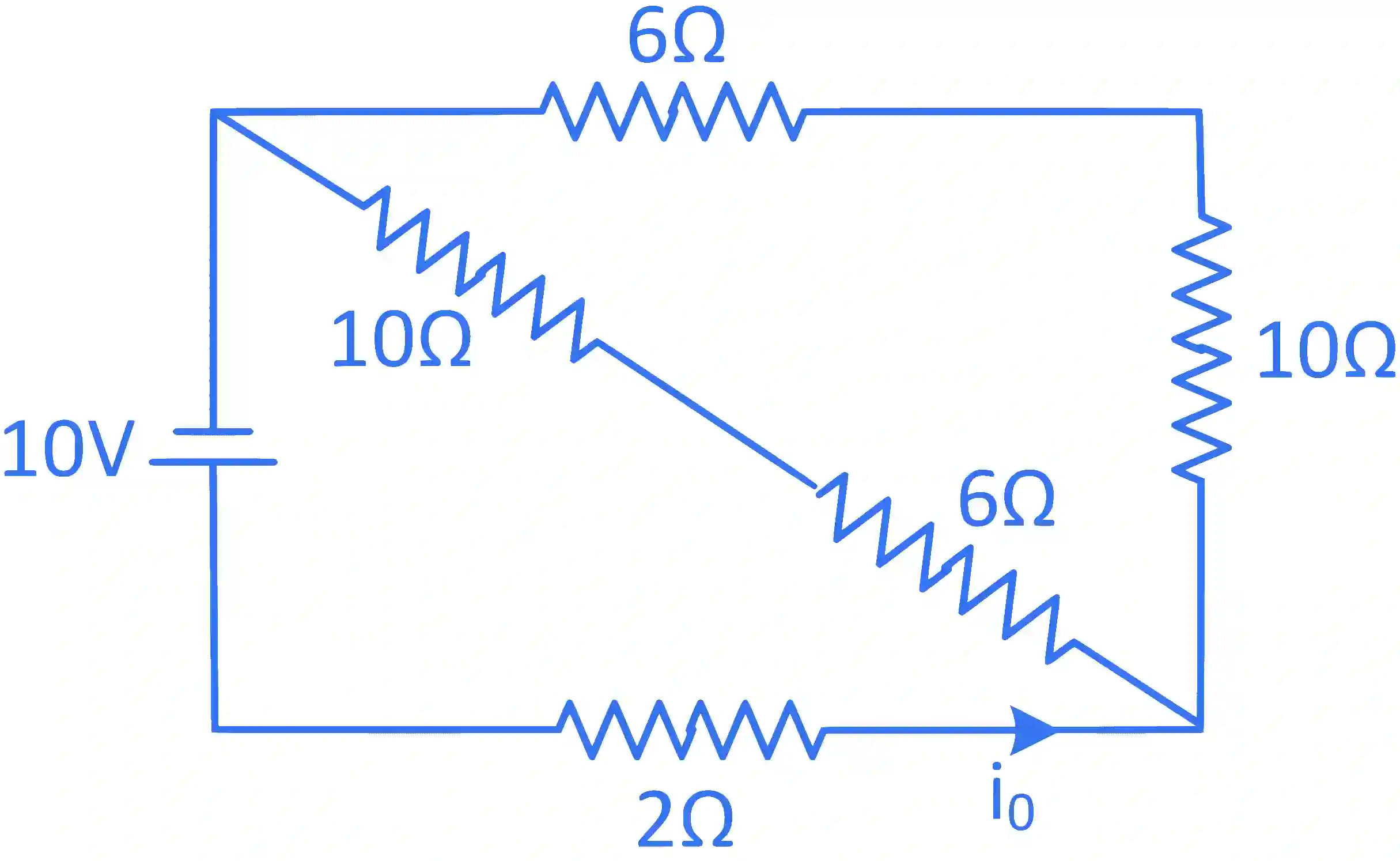

Effective circuit will be

JEE Main 2022 (Online) 26th June Morning Shift Physics - Semiconductor Question 76 English Explanation

R_eq = 16 || 16 + 2 = (8 + 2) $\Omega$

= 10 $\Omega$

I₀ = 10 / 10

= 1 A
