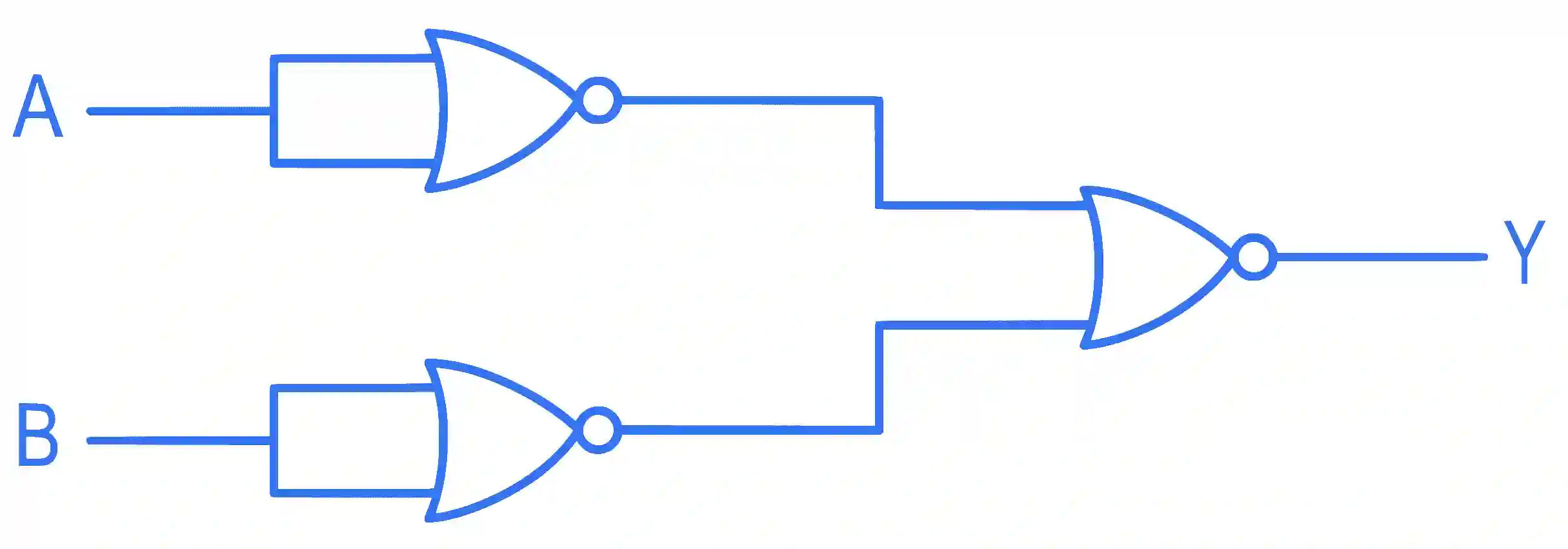

Identify the logic operation performed by the given circuit:

JEE Main 2022 (Online) 25th June Evening Shift Physics - Semiconductor Question 74 English

Accepted Answer

According to the circuit,

Y = (A' + B')'

$\Rightarrow$ Y = AB

$\Rightarrow$ AND gate
