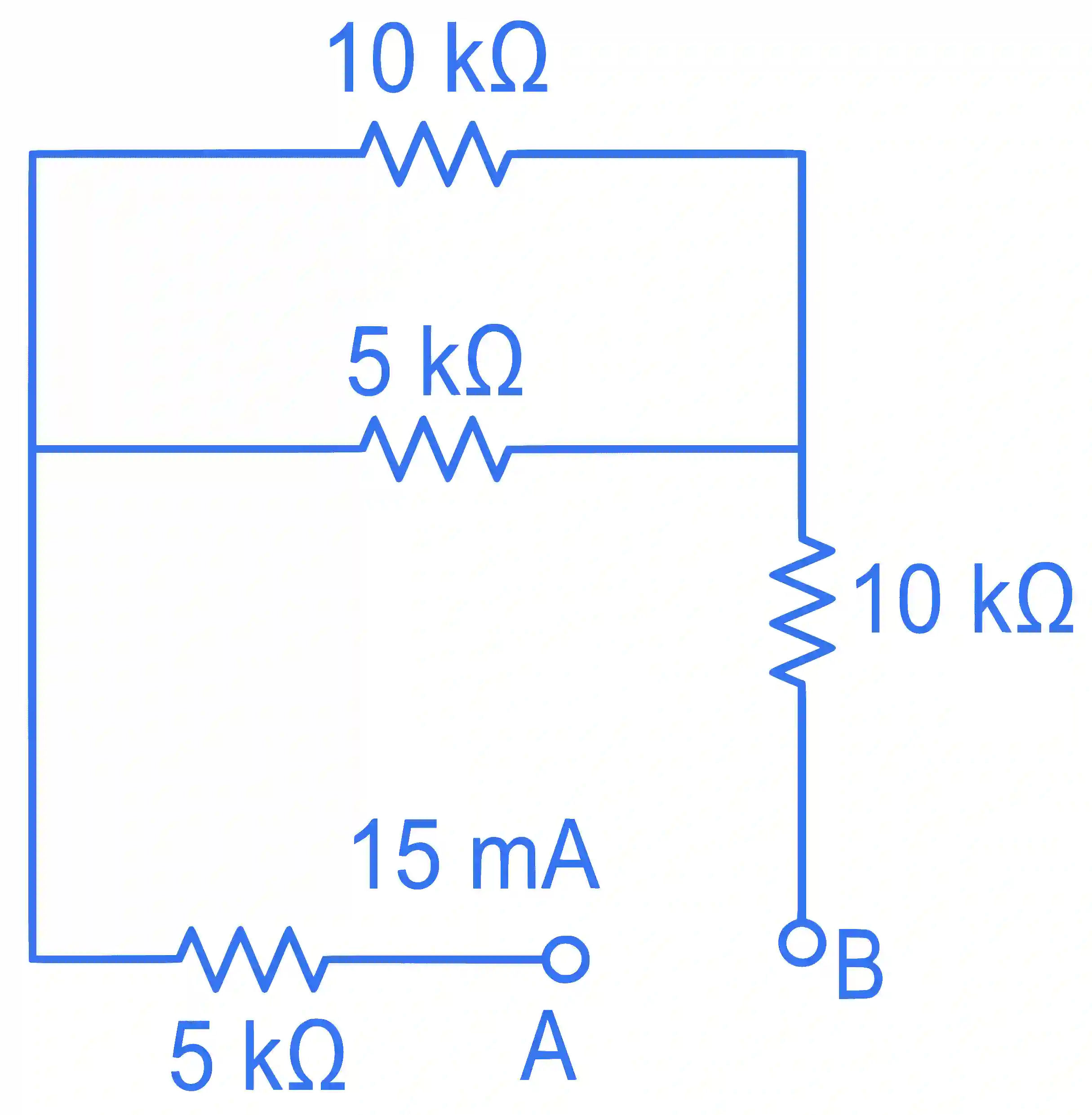

A current of 15 mA flows in the circuit as shown in figure. The value of potential difference between the points A and B will be:

JEE Main 2022 (Online) 25th July Evening Shift Physics - Current Electricity Question 127 English

Accepted Answer

Effective $R = \left[ {5 + {{5 \times 10} \over {5 + 10}} + 10} \right]\,k\Omega$

$= {{275} \over {15}}k\Omega$

$\Rightarrow \Delta {V_{AB}} = 15\,mA \times {{275} \over {15}}k\Omega$

$= 275$ V
