QJEEM22Ph135b: JEE Main 2022 Physics - Class 12 JEEM22Ph135b Solution: In the circuit, the logical value of A = 1 or B = 1 when…

In the circuit, the logical value of A=1 or B=1 when potential at A or B is 5 V and the logical value of A=0 or B=0 when potential at A or B is 0 V.

JEE Main 2022 (Online) 25th July Morning Shift Physics - Semiconductor Question 68 English

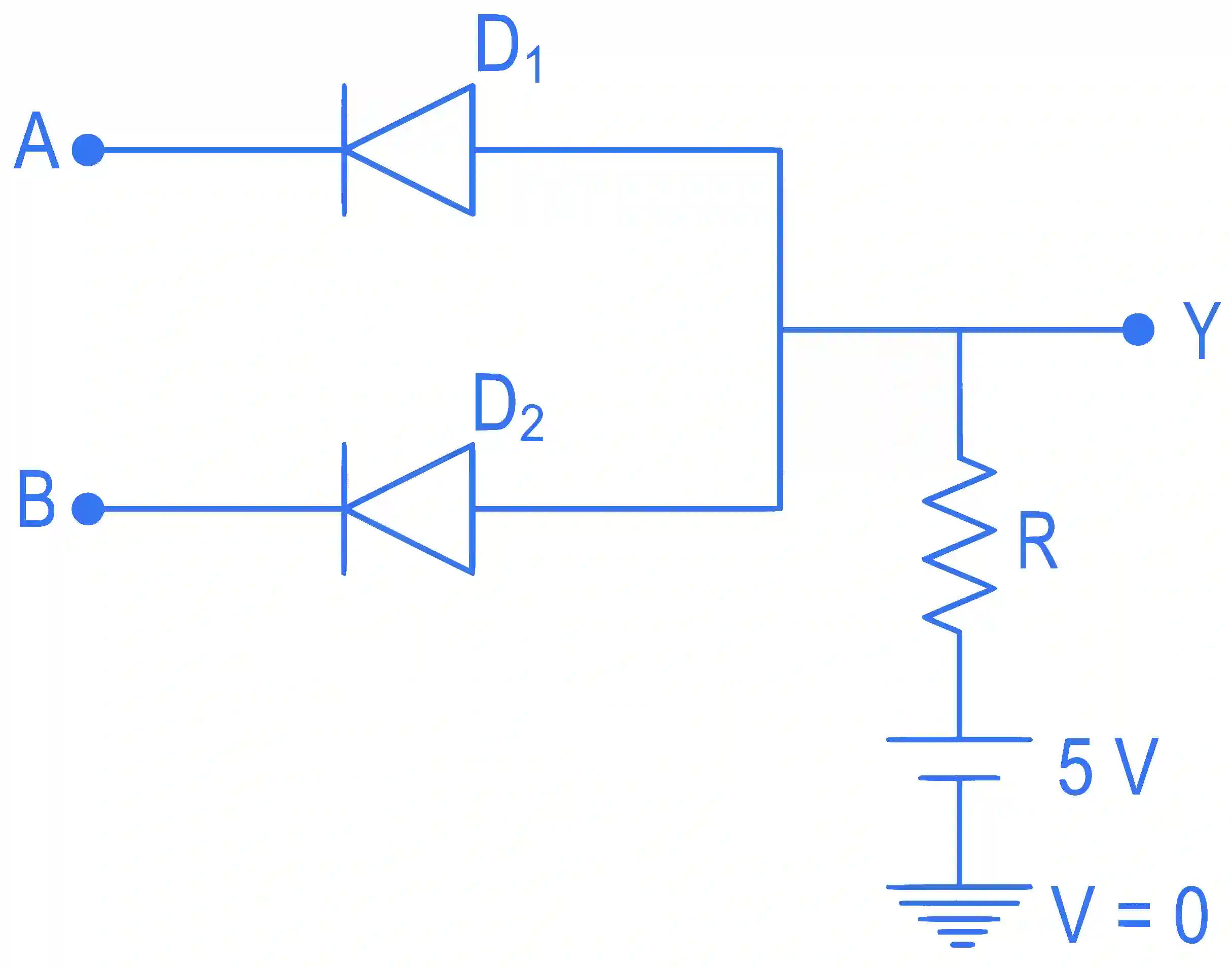

The truth table of the given circuit will be :

Multiple Choice Options

  • A ABY000100010111
  • B ABY000101011111
  • C ABY000100010110
  • D ABY001101011110

Step-by-Step Verified Solution

Given circuit is equivalent to an AND gate.

∴ ABY000010100111
