QJEEM22Ph06d4: JEE Main 2022 Physics - Class 12 JEEM22Ph06d4 Solution: Two ideal diodes are connected in the network as shown in…

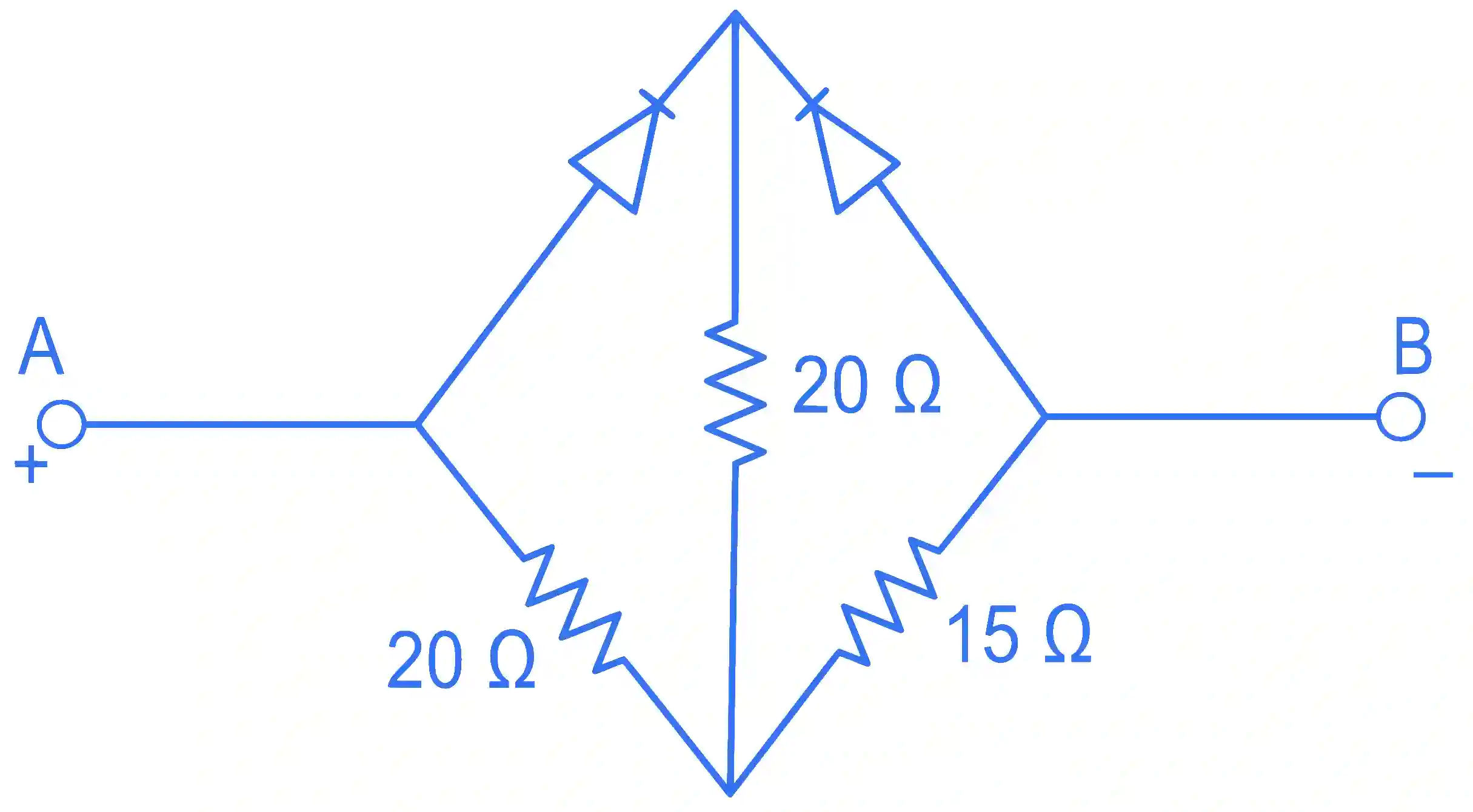

Two ideal diodes are connected in the network as shown in figure. The equivalent resistance between A and B is __________ Ω\Omega .

JEE Main 2022 (Online) 25th July Evening Shift Physics - Semiconductor Question 66 English

Step-by-Step Verified Solution

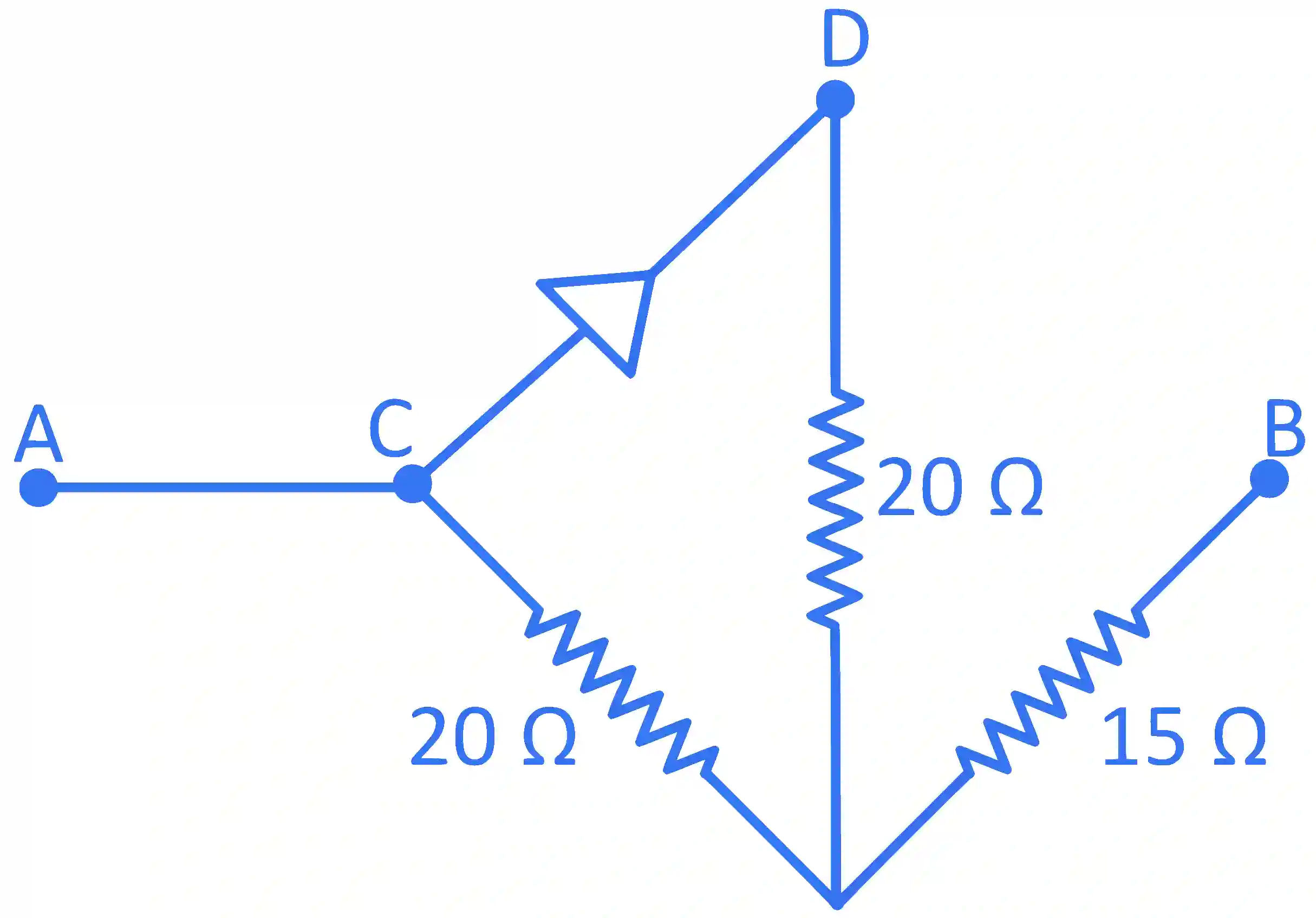

JEE Main 2022 (Online) 25th July Evening Shift Physics - Semiconductor Question 66 English Explanation

R=20×2040+15=25 ΩR = {{20 \times 20} \over {40}} + 15 = 25\,\Omega
