Two sources of equal emfs are connected in series. This combination is connected to an external resistance R. The internal resistances of the two sources are r1r_{1} and r2r_{2} \left(r_{1}>r_{2}\right) . If the potential difference across the source of internal resistance r1r_{1} is zero, then the value of R will be :

Multiple Choice Options

  • A r1−r2r_{1}-r_{2}
  • B r1r2r1+r2\frac{r_{1} r_{2}}{r_{1}+r_{2}}
  • C r1+r22\frac{r_{1}+r_{2}}{2}
  • D r2−r1r_{2}-r_{1}

Step-by-Step Verified Solution

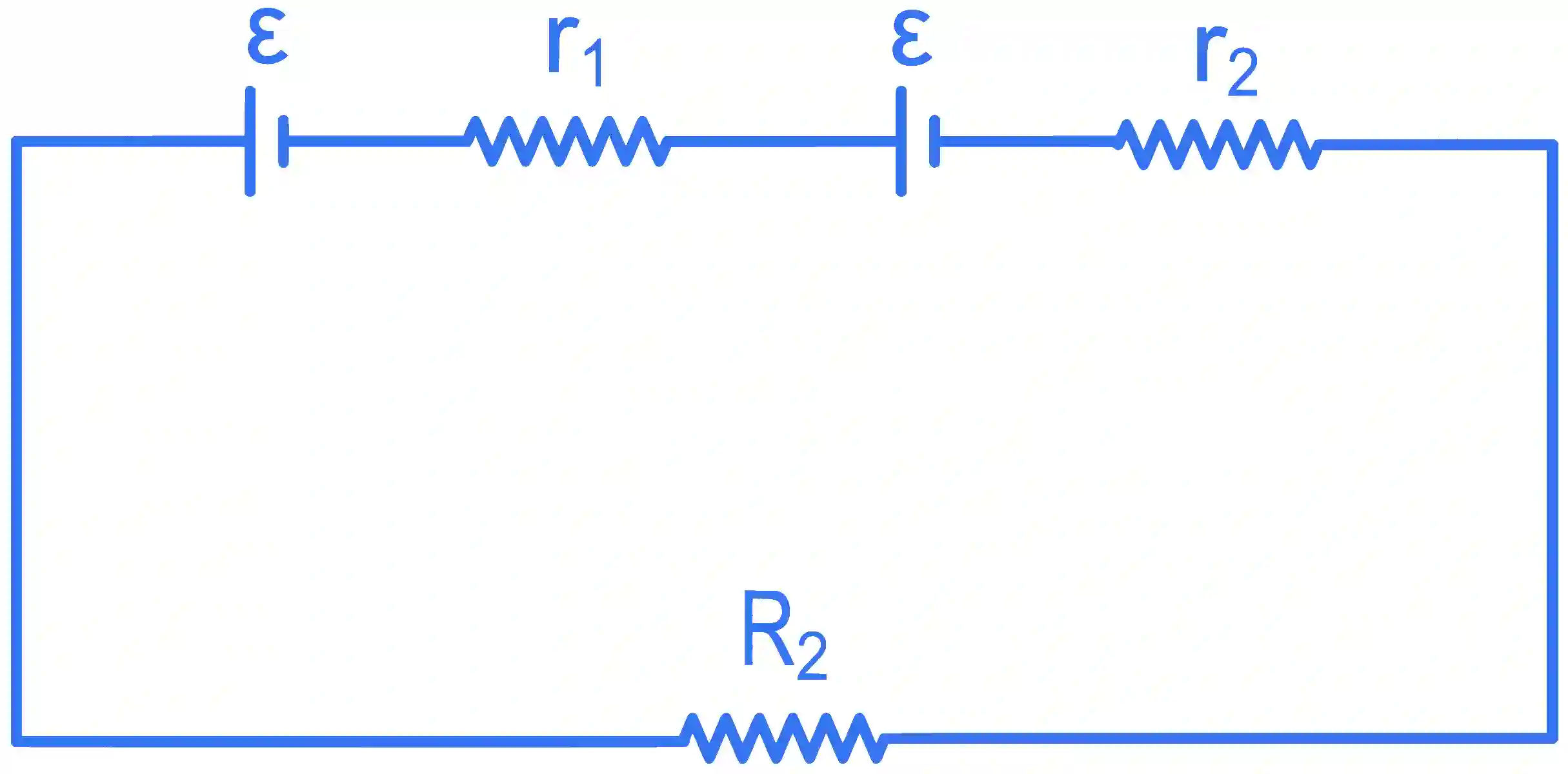

JEE Main 2022 (Online) 27th July Morning Shift Physics - Current Electricity Question 121 English Explanation

ΔV=0⇒2εr1+r2+Rr1=ε\Delta V = 0 \Rightarrow {{2\varepsilon } \over {{r_1} + {r_2} + R}}{r_1} = \varepsilon

⇒R=r1−r2\Rightarrow R = {r_1} - {r_2}
