Verified Solution • 2025–26 Session moderate

QJEEM22Ma2349: JEE Main 2022 Mathematics - Class 12 JEEM22Ma2349 Solution: Let AB and PQ be two vertical poles, 160 m apart from each…

Let AB and PQ be two vertical poles, 160 m apart from each other. Let C be the middle point of B and Q, which are feet of these two poles. Let π8{\pi \over 8} and θ\theta be the angles of elevation from C to P and A, respectively. If the height of pole PQ is twice the height of pole AB, then tan2 θ\theta is equal to

Multiple Choice Options

  • A 3−222{{3 - 2\sqrt 2 } \over 2}
  • B 3+22{{3 + \sqrt 2 } \over 2}
  • C 3−224{{3 - 2\sqrt 2 } \over 4}
  • D 3−24{{3 - \sqrt 2 } \over 4}

Step-by-Step Verified Solution

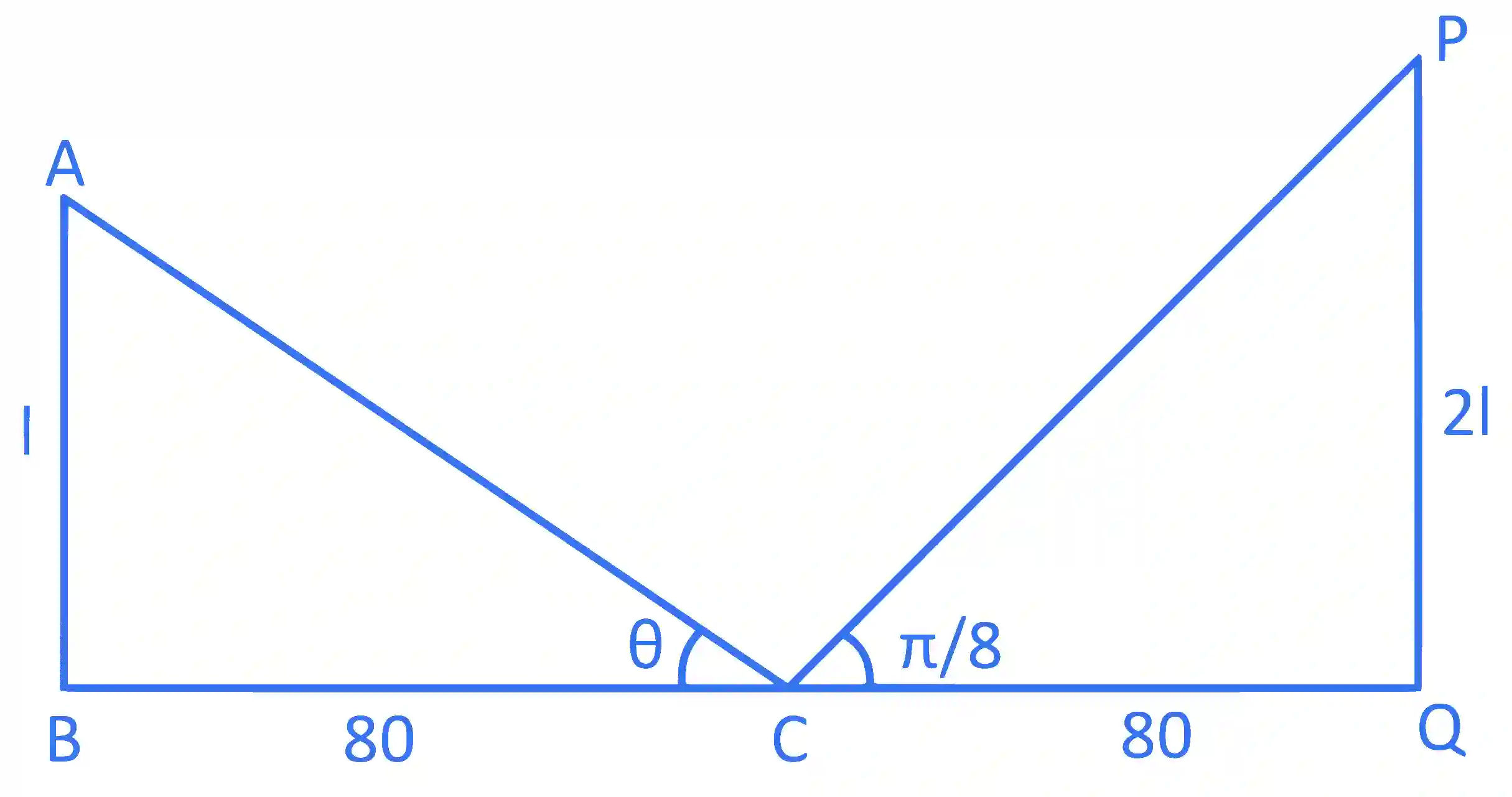

JEE Main 2022 (Online) 28th June Morning Shift Mathematics - Height and Distance Question 9 English Explanation

l80=tan⁡θ{l \over {80}} = \tan \theta ..... (i)

2l80=tan⁡π8{{2l} \over {80}} = \tan {\pi \over 8} ..... (ii)

From (i) and (ii)

12=tan⁡θtan⁡π8⇒tan⁡2θ=14tan⁡2π8{1 \over 2} = {{\tan \theta } \over {\tan {\pi \over 8}}} \Rightarrow {\tan ^2}\theta = {1 \over 4}{\tan ^2}{\pi \over 8}

⇒tan⁡2θ=2−14(2+1)=3−224\Rightarrow {\tan ^2}\theta = {{\sqrt 2 - 1} \over {4(\sqrt 2 + 1)}} = {{3 - 2\sqrt 2 } \over 4}
