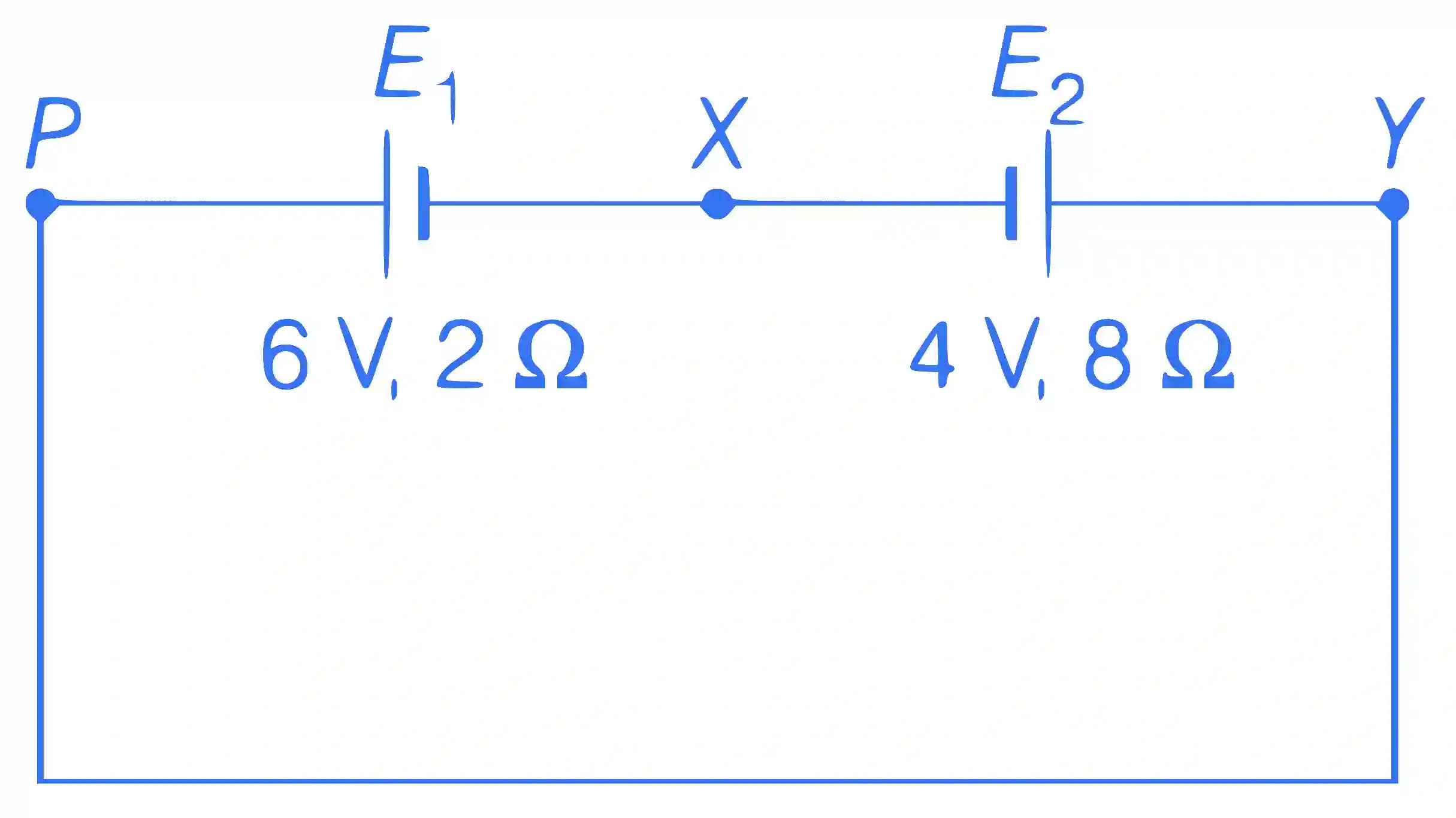

A cell E1 of emf 6V and internal resistance 2Ω is connected with another cell E2 of emf 4V and internal resistance 8Ω (as shown in the figure). The potential difference across points X and Y is :

JEE Main 2021 (Online) 24th February Morning Shift Physics - Current Electricity Question 206 English

Multiple Choice Options

  • A 10.0 V
  • B 2.0 V
  • C 5.6 V
  • D 3.6 V

Step-by-Step Verified Solution

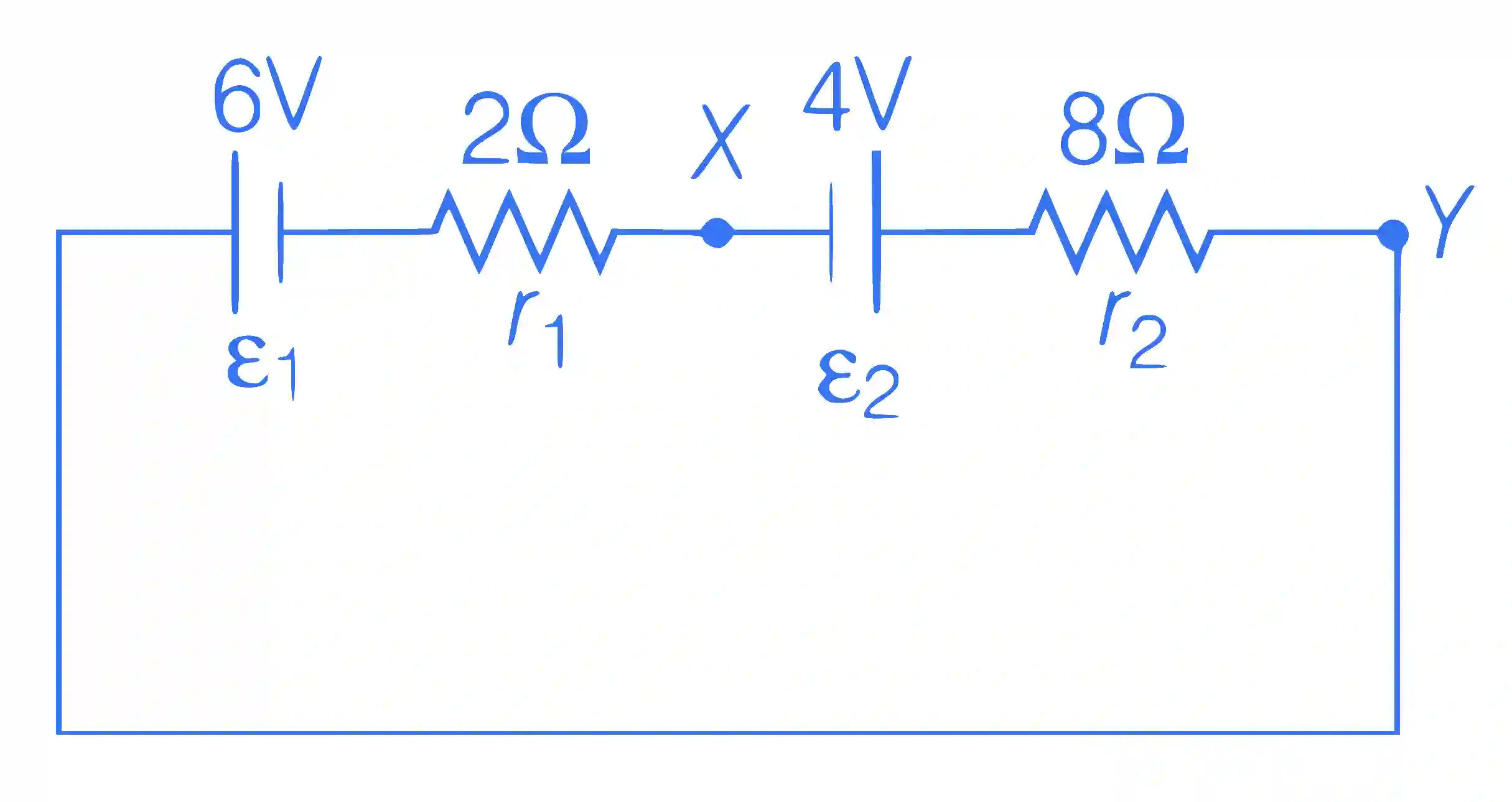

The circuit can be shown as below

JEE Main 2021 (Online) 24th February Morning Shift Physics - Current Electricity Question 206 English Explanation
The current through the circuit,

I=ε1−ε2r1+r2=6−410=15A

∴ Potential difference across points X and Y is

VXY=E2+Ir2=4+15×8=5.6V
