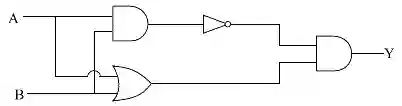

Which one of the following will be the output of the given circuit?

JEE Main 2021 (Online) 17th March Evening Shift Physics - Semiconductor Question 113 English

Multiple Choice Options

  • A XOR Gate
  • B NOR Gate
  • C NAND Gate
  • D AND Gate

Step-by-Step Verified Solution

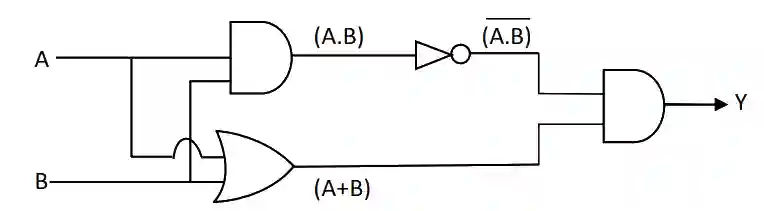

JEE Main 2021 (Online) 17th March Evening Shift Physics - Semiconductor Question 113 English Explanation
y=(A.B―).(A+B)

=(A―+B―).(A+B)

=A―A+A―B+AB―+B―B

=0+A―B+AB―+0

y=A―B+AB―

which is XOR gate
