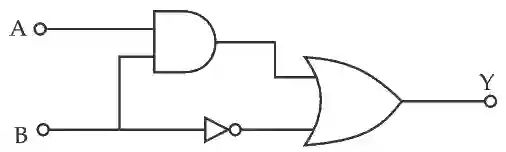

Find the truth table for the function Y of A and B represented in the following figure.

JEE Main 2021 (Online) 27th July Evening Shift Physics - Semiconductor Question 101 English

Multiple Choice Options

  • A https://ik.imagekit.io/novatra/photos/9ec1727c037fcf3582ab33979de892299b57cb147b30e18616be1f1c5bfcdb9d.webp
  • B https://ik.imagekit.io/novatra/photos/2e0f2f085fdd4861dba83eb283944301a551732b14b04e7c0086c19ccf54a5e8.webp
  • C https://ik.imagekit.io/novatra/photos/6a67682dece40c73faf535150403cecea6c58ae124c44778d7725173525659a1.webp
  • D https://ik.imagekit.io/novatra/photos/de93af8e998527673c31a09bc3ca502468e2faa32cac987c988979d13fcb87d4.webp

Step-by-Step Verified Solution

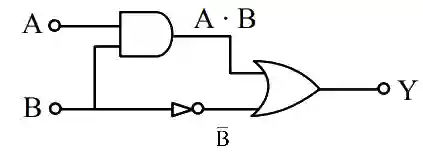

JEE Main 2021 (Online) 27th July Evening Shift Physics - Semiconductor Question 101 English Explanation 1
Y = A . B + B‾\overline B

JEE Main 2021 (Online) 27th July Evening Shift Physics - Semiconductor Question 101 English Explanation 2
