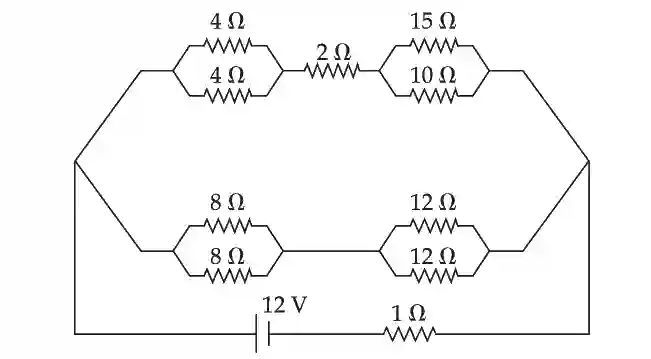

The voltage drop across 15 $\Omega$ resistance in the given figure will be ______________ V.

Step-by-Step Verified Solution

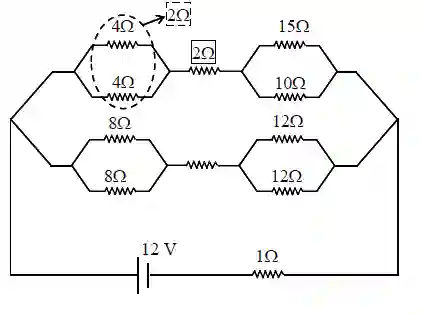

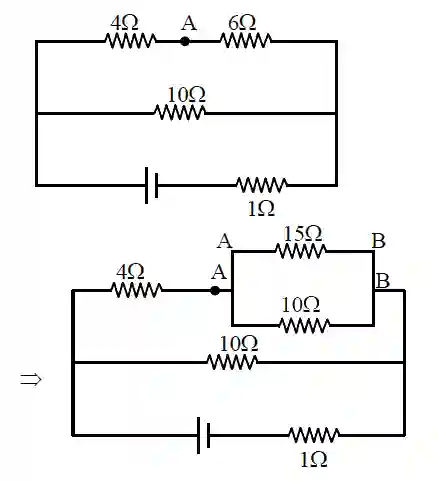

$\Rightarrow$ effective circuit diagram will be

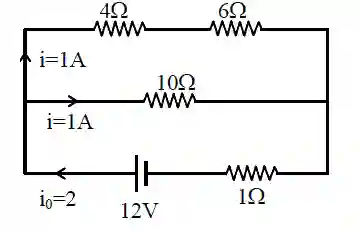

Point drop across 6 $\Omega$ = 1 $\times$ 6 = 6 = V_AB

$\Rightarrow$ Hence point drop across 15 $\Omega$ = 6 volt = V_AB
