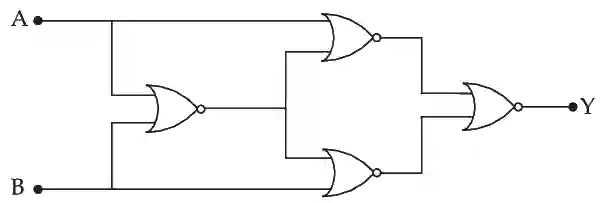

Four NOR gates are connected as shown in figure. The truth table for the given figure is :

JEE Main 2021 (Online) 26th August Evening Shift Physics - Semiconductor Question 98 English

Multiple Choice Options

  • A https://ik.imagekit.io/novatra/photos/7b1ff518aa1226bce28bc206216ff75af833a7bc5aa6be1aa933bd77f30eb8be.webp
  • B https://ik.imagekit.io/novatra/photos/8ecc69424ed16ac50dc4216a03fbf8610d3ab7bd6b6003139c9d5ab48b2b7ec5.webp
  • C https://ik.imagekit.io/novatra/photos/5200d9f4f52e200f7538540e5a2b8a1db07c4bfb47406362cf67ef2b30db88b7.webp
  • D https://ik.imagekit.io/novatra/photos/88289a30b82bc2a1ec362ca2002948c048d9413928ebe2626aeb279eff4c8428.webp

Step-by-Step Verified Solution

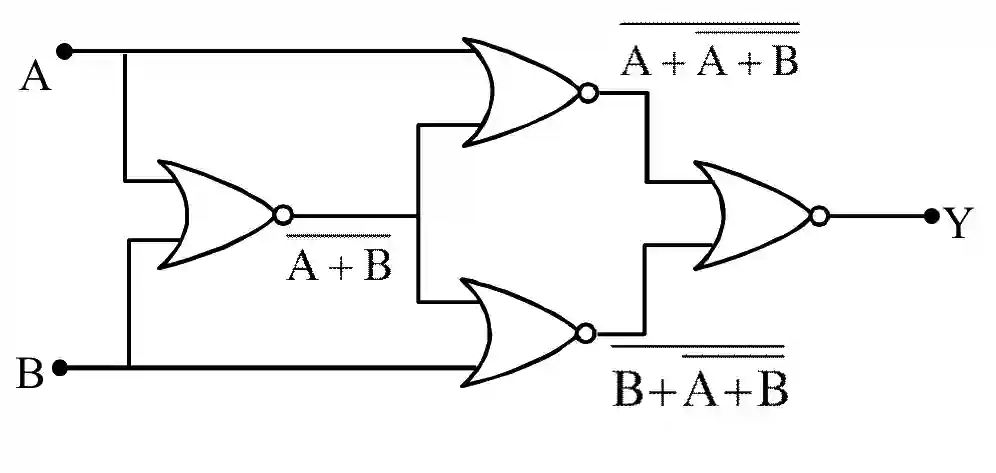

JEE Main 2021 (Online) 26th August Evening Shift Physics - Semiconductor Question 98 English Explanation

y=(A+A+B‾‾)+(B+A+B‾‾)‾y = \overline {(\overline {A + \overline {A + B} } ) + (\overline {B + \overline {A + B} } )}

y=(A+A+B‾).(B+A+B‾)y = (A + \overline {A + B} ).(B + \overline {A + B} )

A B y
0 0 1
0 1 0
1 0 0
1 1 1
