QJEEM21Ph4eb5: JEE Main 2021 Physics - Class 12 JEEM21Ph4eb5 Solution: In the given figure the magnetic flux through the loop…

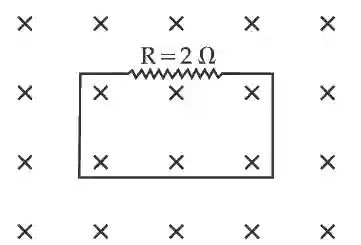

In the given figure the magnetic flux through the loop increases according to the relation B(t) = 10t2 + 20t, where B is in milliwebers and t is in seconds.
The magnitude of current through R = 2 resistor at t = 5 s is ___________ mA.
The magnitude of current through R = 2 resistor at t = 5 s is ___________ mA.
Step-by-Step Verified Solution
= 20t + 20 mV
= 10t + 10 mA
at t = 5
= 60 mA
= 10t + 10 mA
at t = 5
= 60 mA
