QJEEM21Ph1b8a: JEE Main 2021 Physics - Class 12 JEEM21Ph1b8a Solution: In the following logic circuit the sequence of the inputs A, B…

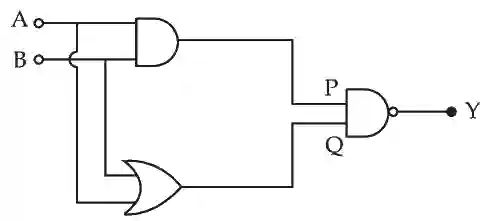

In the following logic circuit the sequence of the inputs A, B are (0, 0), (0, 1), (1, 0) and (1, 1). The output Y for this sequence will be :

JEE Main 2021 (Online) 31st August Morning Shift Physics - Semiconductor Question 92 English

Multiple Choice Options

  • A 1, 0, 1, 0
  • B 0, 1, 0, 1
  • C 1, 1, 1, 0
  • D 0, 0, 1, 1

Step-by-Step Verified Solution

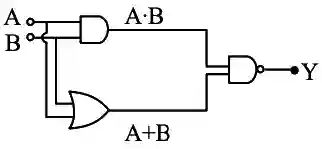

JEE Main 2021 (Online) 31st August Morning Shift Physics - Semiconductor Question 92 English Explanation
Y=(A.B).(A+B)―

Y)(0,0)=1

Y)(0,1)=1

Y)(1,0)=1

Y)(1,1)=0

Option (c) is correct.
