QJEEM20Phe02c: JEE Main 2020 Physics - Class 12 JEEM20Phe02c Solution: Identify the operation performed by the circuit given below :

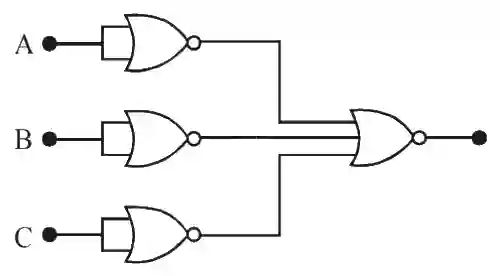

Identify the operation performed by the circuit given below : JEE Main 2020 (Online) 4th September Evening Slot Physics - Semiconductor Question 134 English

Multiple Choice Options

  • A AND
  • B NAND
  • C OR
  • D NOT

Step-by-Step Verified Solution

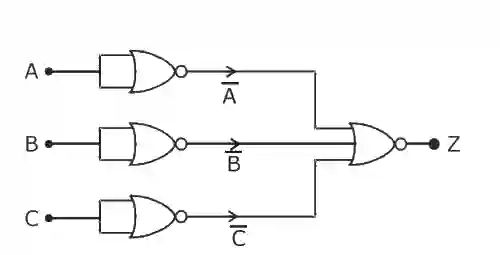

JEE Main 2020 (Online) 4th September Evening Slot Physics - Semiconductor Question 134 English Explanation

Z = A―+B―+C―― = A――.B――.C―― = A.B.C = AND Gate
