QJEEM20Phd011: JEE Main 2020 Physics - Class 12 JEEM20Phd011 Solution: Both the diodes used in the circuit shown are assumed to be…

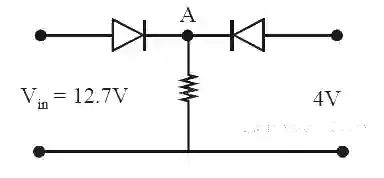

Both the diodes used in the circuit shown are assumed to be ideal and have negligible resistance when these are forward biased. Built in potential in each diode is 0.7 V. For the input voltages shown in the figure, the voltage (in Volts) at point A is __________. JEE Main 2020 (Online) 9th January Morning Slot Physics - Semiconductor Question 143 English

Step-by-Step Verified Solution

VA = 12.7 – 0.7 = 12 Volt

Diode left hand diode is forward biased and right hand diode is reverse biased.
