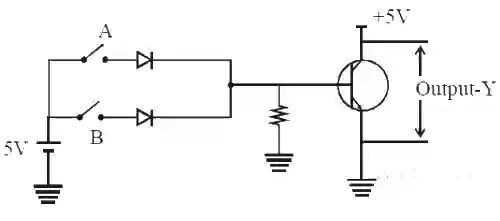

Boolean relation at the output stage-Y for the following circuit is : JEE Main 2020 (Online) 8th January Morning Slot Physics - Semiconductor Question 145 English

Multiple Choice Options

  • A A.B
  • B A―+B―
  • C A―.B―
  • D A + B

Step-by-Step Verified Solution

Truth table for the given circuit
JEE Main 2020 (Online) 8th January Morning Slot Physics - Semiconductor Question 145 English Explanation
It is truth table of A+B―

A+B― = A―.B―
