QJEEM20Ph9b30: JEE Main 2020 Physics - Class 12 JEEM20Ph9b30 Solution: In the figure shown, the current in the 10 V battery is close…

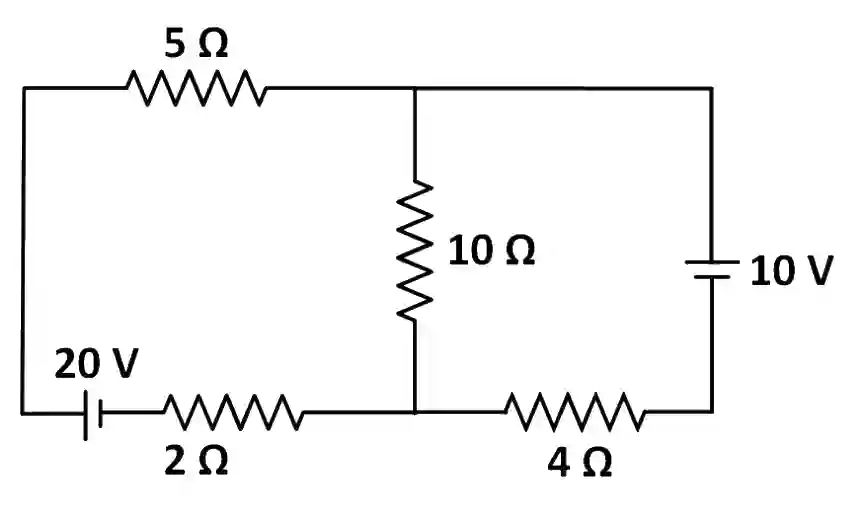

In the figure shown, the current in the 10 V battery is close to :
Multiple Choice Options
- A 0.36 A from negative to positive terminal
- B 0.42 A from positive to negative terminal
- C 0.71 A from positive to negative terminal
- D 0.21 A from positive to negative terminal
Step-by-Step Verified Solution

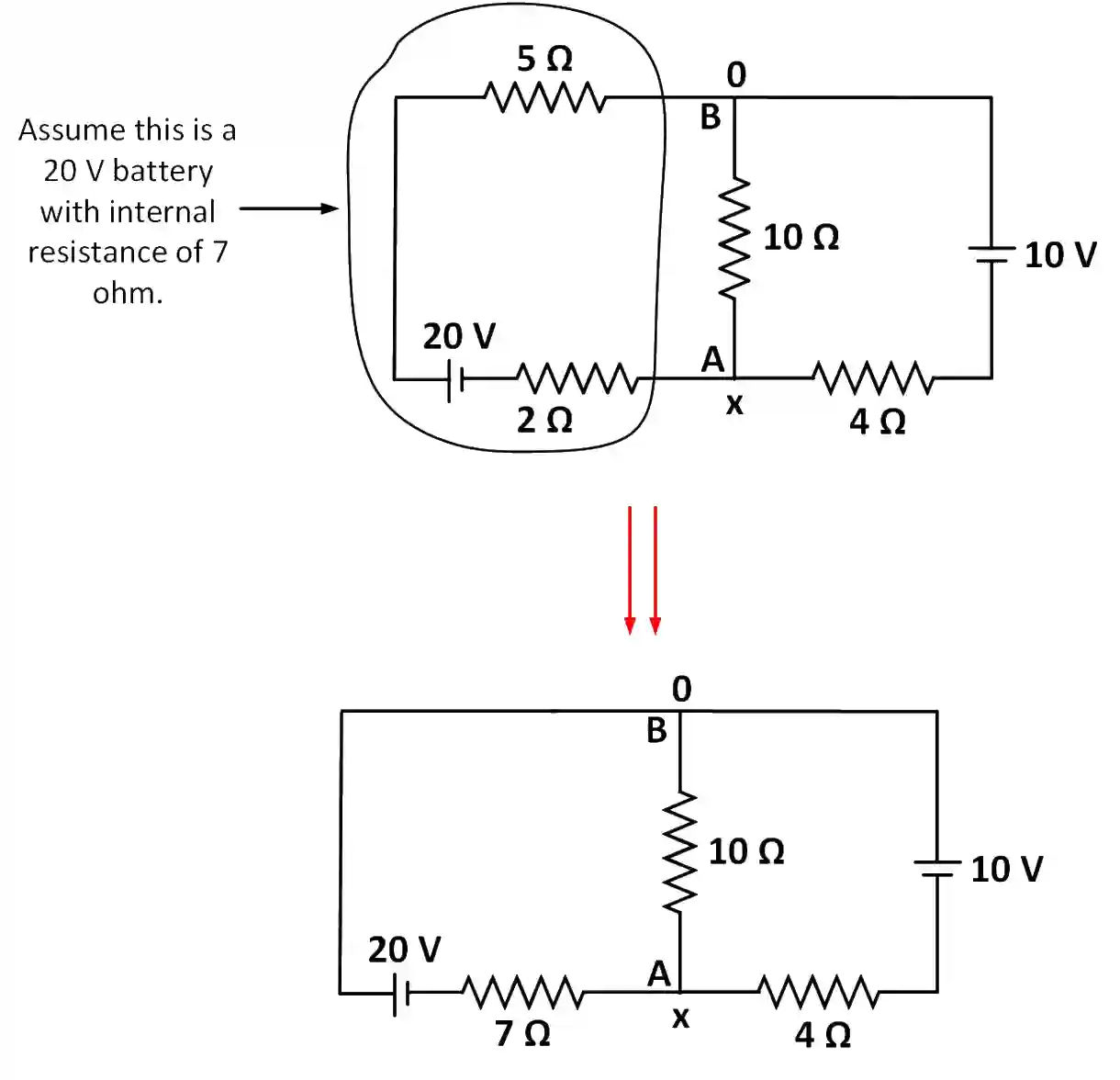

Apply Kirchhoff’s Current Law at junction A,
Current through 10 v,
i =
As sign of current is negative so it will flow from positive to negative terminal.
