QJEEM20Ph83c5: JEE Main 2020 Physics - Class 12 JEEM20Ph83c5 Solution: In the circuit shown, charge on the 5 μ F capacitor is :

Question

Verified Solution • 2025–26 Session moderate

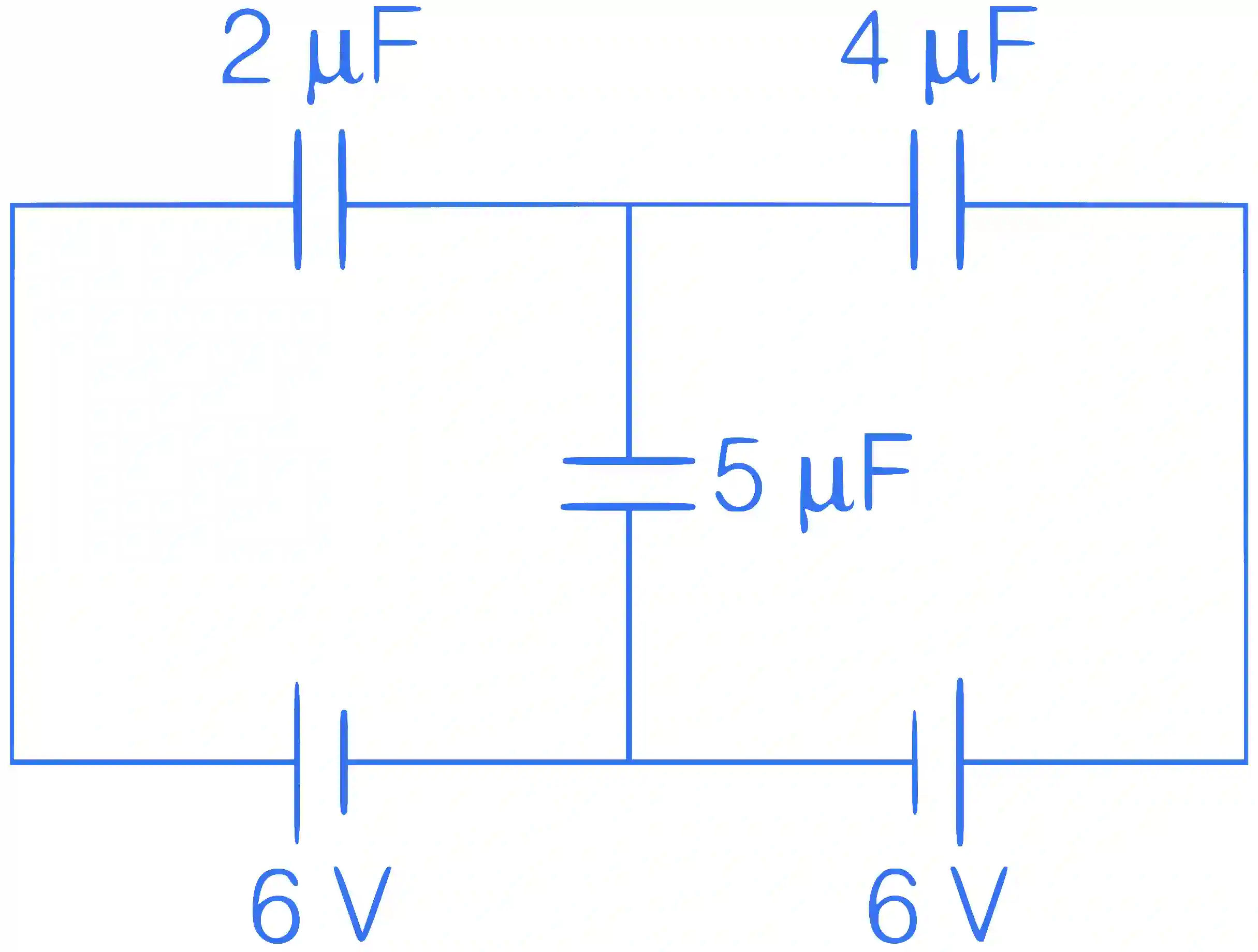

In the circuit shown, charge on the 5

μ

F capacitor is :

JEE Main 2020 (Online) 5th September Evening Slot Physics - Capacitor Question 94 English

Accepted Answer

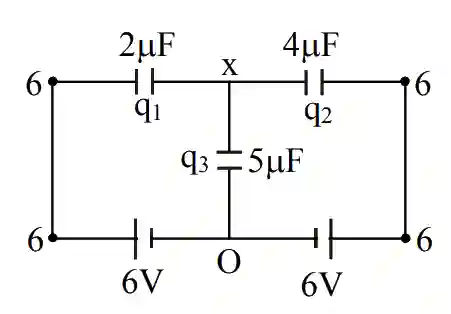

Let potential of point O v₀ = 0.

Now, using junction analysis

We can say, q₁ + q₂ + q₃ = 0

\Rightarrow

2(x – 6) + 4(x – 6) + 5(x) = 0

\Rightarrow

x =

\frac{36}{11}

q₃ = CV =

\frac{36}{11} \times 5

= 16.36

μ

C
