A point like object is placed at a distance of 1 m in front of a convex lens of focal length 0.5 m. A plane mirror is placed at a distance of 2 m behind the lens. The position and nature of the final image formed by the system is :

Multiple Choice Options

  • A 2.6 m from the mirror, real
  • B 1 m from the mirror, real
  • C 2.6 m from the mirror, virtual
  • D 1 m from the mirror, virtual

Step-by-Step Verified Solution

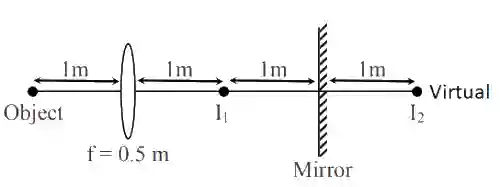

JEE Main 2020 (Online) 6th September Morning Slot Physics - Geometrical Optics Question 139 English Explanation

Object is at 2f. So image will also be at 2f. (I1).

Image(I2) of I1 will be 1 m behind mirror.

Now I2 will be object for lens.

∴\therefore u = -3 m

f = + 0.5 m

1v=1f+1u{1 \over v} = {1 \over f} + {1 \over u}

= 10.5+1−3{1 \over {0.5}} + {1 \over { - 3}}

⇒\Rightarrow v = 35{3 \over 5} = 0.6 m

So total distance from mirror = 2 + 0.6 = 2.6 m and real image.
