Question

Verified Solution • 2025–26 Session moderate

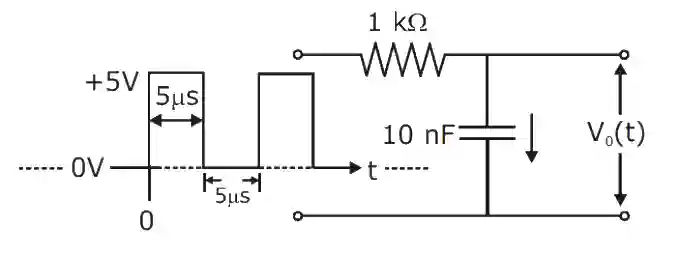

For the given input voltage waveform V_in(t), the output voltage waveform V₀(t), across the capacitor is correctly depicted by :

A https://ik.imagekit.io/novatra/photos/e0c50fed5de187c07bf1c40e49d7d4a750f25136f2ff73190731714f2021dedb.webp
B https://ik.imagekit.io/novatra/photos/3f32f6ff26cfa7f7f9a9aaeb5e8aca4777216c244998cf2b6965f4abbf79647b.webp
C https://ik.imagekit.io/novatra/photos/bb04b98091cff2141c9b0ae8f9e9591f2cfde3d5f19ab9d3bd9523f68b6cd2b9.webp
D https://ik.imagekit.io/novatra/photos/57fa85294424bd7344c4453735d43173d283ad6ea7173e25c3c6a5f2a14f8e24.webp

Accepted Answer

τ

= RC = 10

μ

s

For 0 < t < 5

μ

s, capacitor is charging.

For 5 < t < 10

μ

s potential is constant so capacitor is discharging but during discharging not possible to discharge 100%.

After that capacitor again gets charged.
