QJEEM20Ph0342: JEE Main 2020 Physics - Class 12 JEEM20Ph0342 Solution: Identify the correct output signal Y in the given combination…

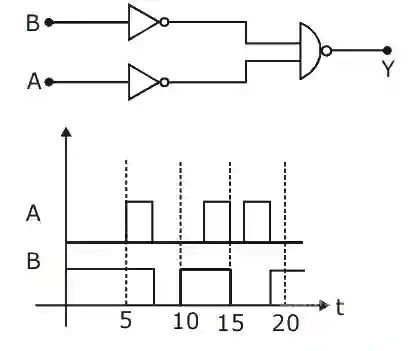

Identify the correct output signal Y in the given combination of gates (as shown) for the given inputs A and B. JEE Main 2020 (Online) 6th September Morning Slot Physics - Semiconductor Question 131 English

Multiple Choice Options

  • A https://ik.imagekit.io/novatra/photos/e417e4f6fb8e79821393643e14cc63dfa5c2924a705484414c98e6c6afa4c143.webp
  • B https://ik.imagekit.io/novatra/photos/fc31b0485c9336205d3f1e7e045e5fea490414c9582d18351fc824bdea9c9688.webp
  • C https://ik.imagekit.io/novatra/photos/4099247b30c9b690f1737d84356622ea887296a2fc416d70972fe684f39688ef.webp
  • D https://ik.imagekit.io/novatra/photos/7946b56a2a4b32b209d260a0b194210c035fc7ff0e2e0c67e07e554576466e62.webp

Step-by-Step Verified Solution

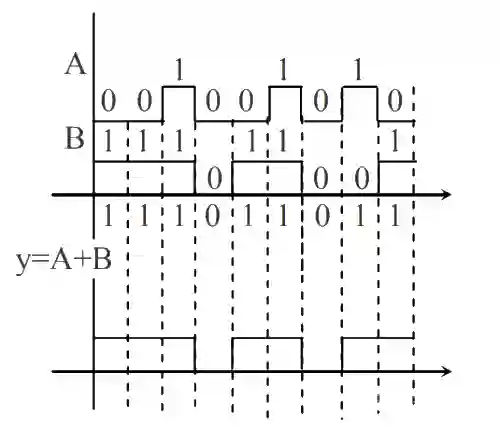

y = A―.B―― = A―― + B―― = A + B JEE Main 2020 (Online) 6th September Morning Slot Physics - Semiconductor Question 131 English Explanation
