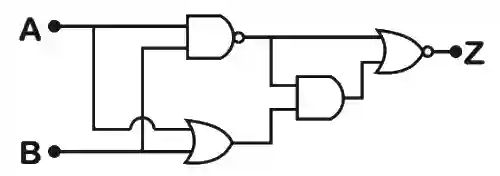

In the following digital circuit, what will be the output at ‘Z’, when the
input (A, B) are (1, 0), (0, 0), (1, 1,), (0, 1) JEE Main 2020 (Online) 2nd September Evening Slot Physics - Semiconductor Question 138 English

Multiple Choice Options

  • A 1, 1, 0, 1
  • B 0, 1, 0, 0
  • C 1, 0, 1, 1
  • D 0, 0, 1, 0

Step-by-Step Verified Solution

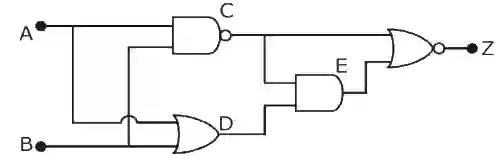

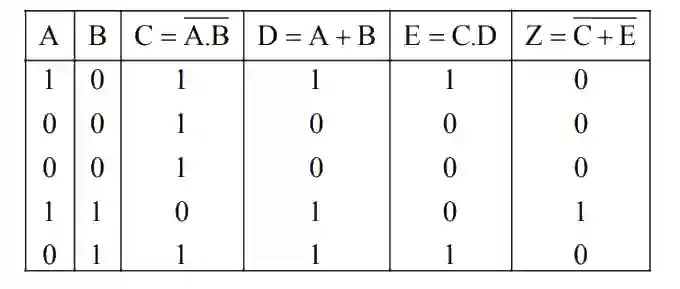

JEE Main 2020 (Online) 2nd September Evening Slot Physics - Semiconductor Question 138 English Explanation 1 JEE Main 2020 (Online) 2nd September Evening Slot Physics - Semiconductor Question 138 English Explanation 2
