QJEEM19Phf215: JEE Main 2019 Physics - Class 12 JEEM19Phf215 Solution: The truth table for the circuit given in the fig. is:

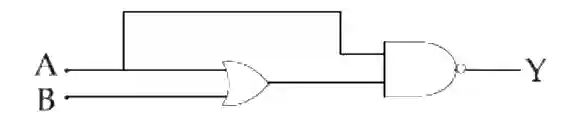

The truth table for the circuit given in the fig. is:
Multiple Choice Options
- A |ABY001011101111|
- B |ABY001010100110|
- C |ABY001011100110|
- D |ABY000010101111|
Step-by-Step Verified Solution
C = A + B
and y =
and y =
| A | B | C=(A+B) | A.C. | y= |
|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 1 |
| 0 | 1 | 1 | 0 | 1 |
| 1 | 0 | 1 | 1 | 0 |
| 1 | 1 | 1 | 1 | 0 |
