Verified Solution • 2025–26 Session moderate

QJEEM19Phe2fc: JEE Main 2019 Physics - Class 12 JEEM19Phe2fc Solution: A wire of resistance R is bent to form a square ABCD as shown…

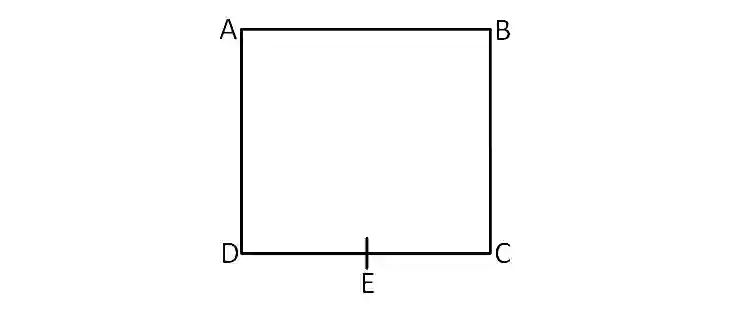

A wire of resistance R is bent to form a square ABCD as shown in the figure. The effective resistance between E and C is : (E is mid-point of arm CD) JEE Main 2019 (Online) 9th April Morning Slot Physics - Current Electricity Question 244 English

Multiple Choice Options

  • A 764R
  • B 116R
  • C R
  • D 34R

Step-by-Step Verified Solution

1Req=87R+8R

1Req=8+567R;Req=7R64
