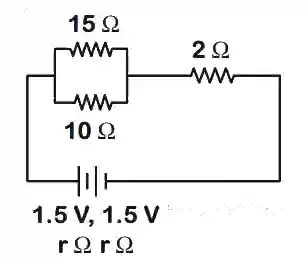

In the given circuit, an ideal voltmeter connected across the 10 Ω\Omega resistance reads 2V. The internal resistance r, of each cell is: JEE Main 2019 (Online) 10th April Morning Slot Physics - Current Electricity Question 235 English

Multiple Choice Options

  • A 1.5 Ω\Omega
  • B 1 Ω\Omega
  • C 0.5 Ω\Omega
  • D 0 Ω\Omega

Step-by-Step Verified Solution

For the given circuit

JEE Main 2019 (Online) 10th April Morning Slot Physics - Current Electricity Question 235 English Explanation Given that VAB = 2 V

∴\therefore I = 215+210=13A{2 \over {15}} + {2 \over {10}} = {1 \over 3}A

Also I(2r + 2) = 1.5 + 1.5 – VAB

⇒\Rightarrow 2r + 2 = (3–2)3

⇒\Rightarrow r=12Ωr = {1 \over 2}\Omega
