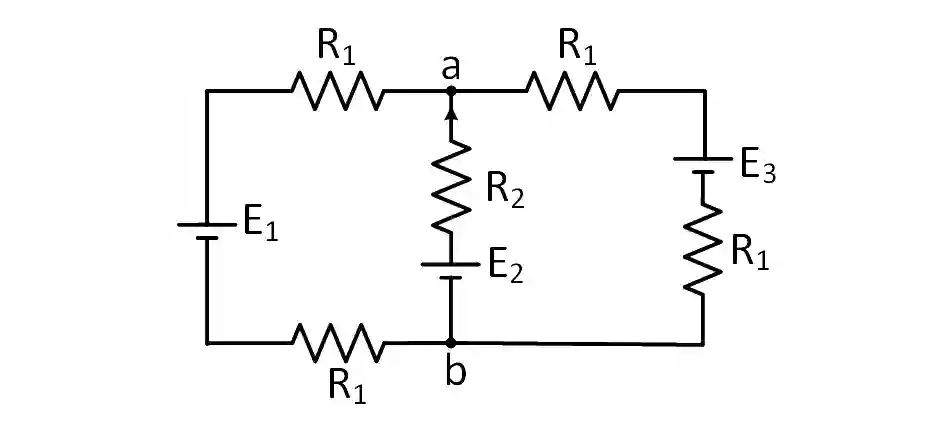

For the circuit shown, with R₁ = 1.0W, R₂ = 2.0 W, E₁ = 2 V and E₂ = E₃ = 4 V, the potential difference between the points 'a' and 'b' is approximately (in V): JEE Main 2019 (Online) 8th April Morning Slot Physics - Current Electricity Question 248 English

JEE Main 2019 (Online) 8th April Morning Slot Physics - Current Electricity Question 248 English

Multiple Choice Options

A 3.3
B 2.7
C 2.3
D 3.7

Related Learning Resources & Exam Preparation

JEE Main PYQ Question Bank

Browse year-wise authentic previous years' questions with solutions

Authentic CBT Mock Tests

Simulate official exam environment with live timer and percentile scoring

Accepted Answer

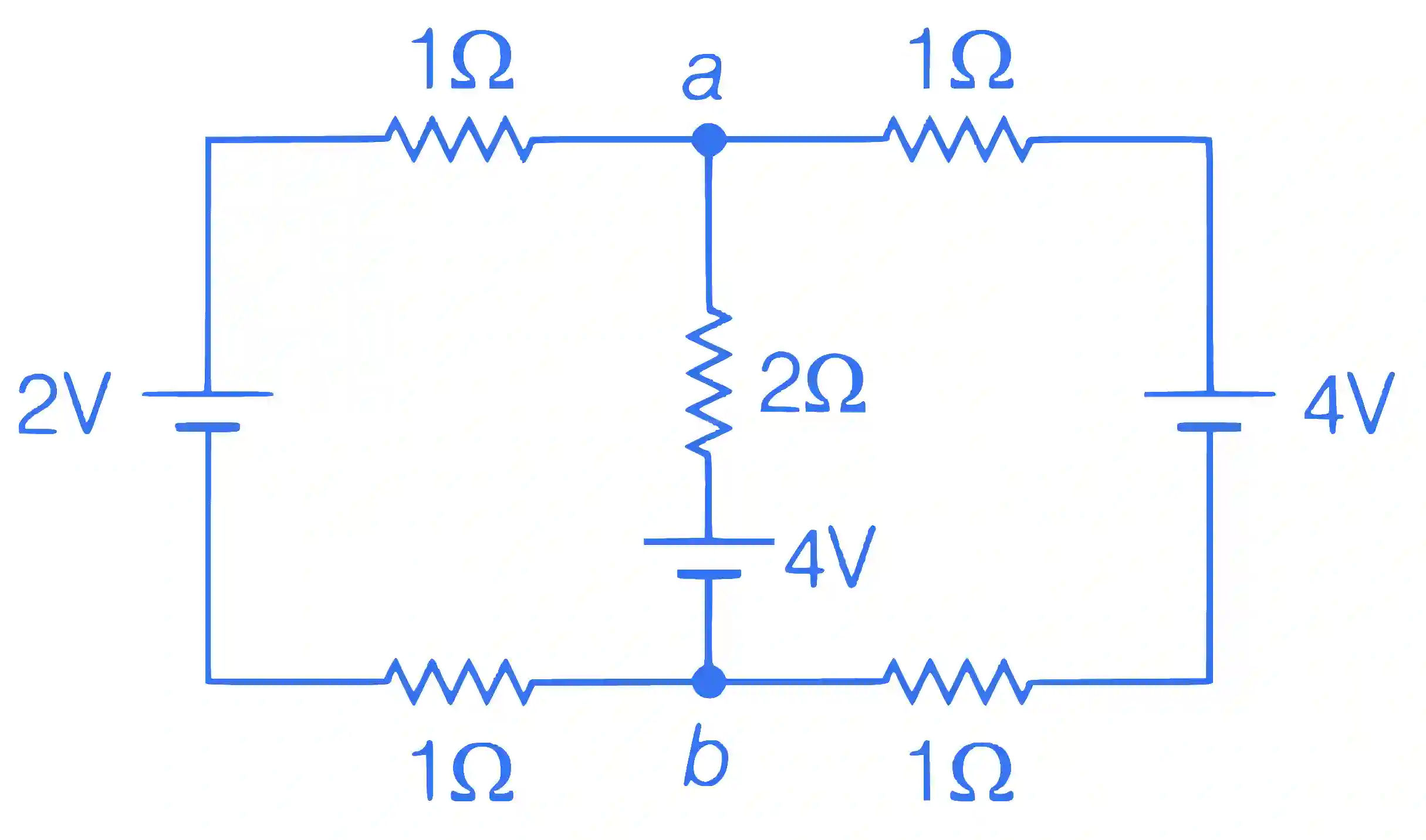

Given circuit is

JEE Main 2019 (Online) 8th April Morning Slot Physics - Current Electricity Question 248 English Explanation 1

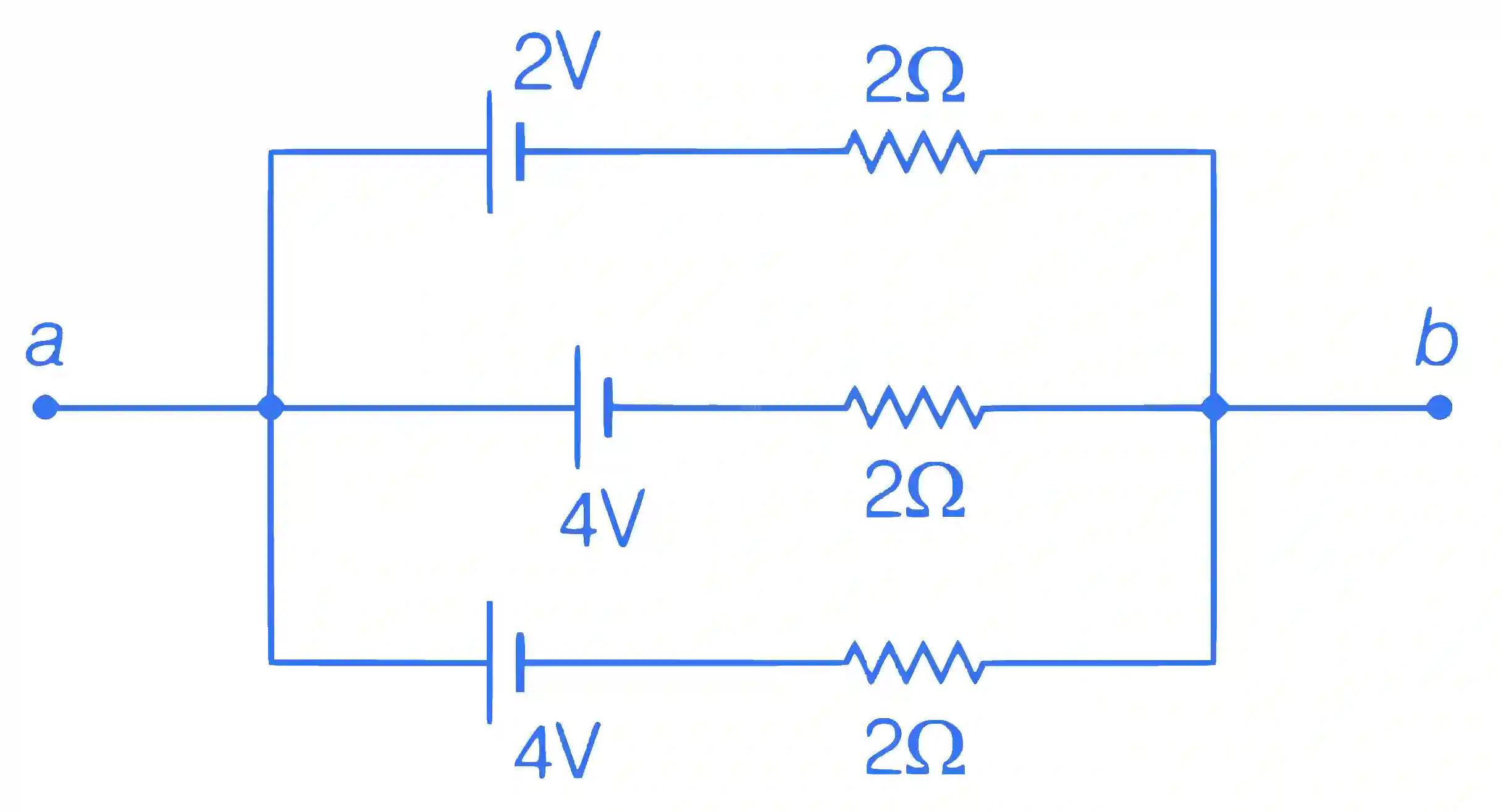

Above circuit can be viewed as

JEE Main 2019 (Online) 8th April Morning Slot Physics - Current Electricity Question 248 English Explanation 2

This is a parallel combination of three cells or in other words, a parallel grouping of three cells with internal resistances.

So, $V_{a b} = E_{e q} = \frac{I_{e q}}{r_{e q}} = \frac{\frac{E_{1}}{r_{1}} + \frac{E_{2}}{r_{2}} + \frac{E_{3}}{r_{3}}}{\frac{1}{r_{1}} + \frac{1}{r_{2}} + \frac{1}{r_{3}}}$

$= \frac{\frac{2}{2} + \frac{4}{2} + \frac{4}{2}}{\frac{1}{2} + \frac{1}{2} + \frac{1}{2}} = \frac{10}{3} V \approx 3.3 V$
