QJEEM19Ph40dc: JEE Main 2019 Physics - Class 12 JEEM19Ph40dc Solution: The logic gate equivalent to the given logic circuit is :-

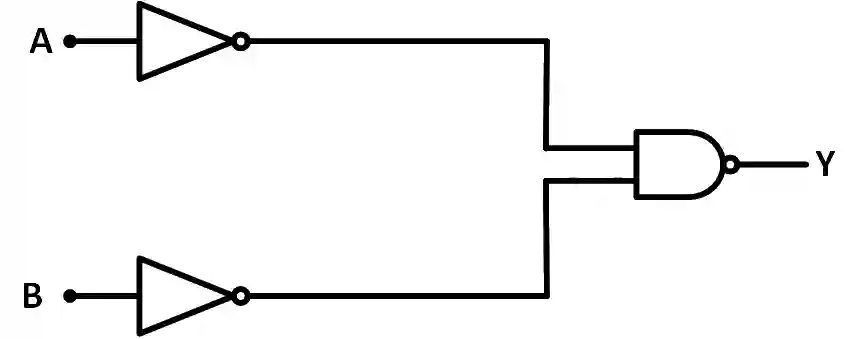

The logic gate equivalent to the given logic circuit is :-
Multiple Choice Options
- A NAND
- B AND
- C NOR
- D OR
Step-by-Step Verified Solution
Truth table can be formed as
Hence the equivalent is “OR” gate
| A | B | Equivalent |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 1 |
Hence the equivalent is “OR” gate
