QJEEM18Ph638e: JEE Main 2018 Physics - Class 12 JEEM18Ph638e Solution: In the given circuit, the current through zener diode is :

In the given circuit, the current through zener diode is :

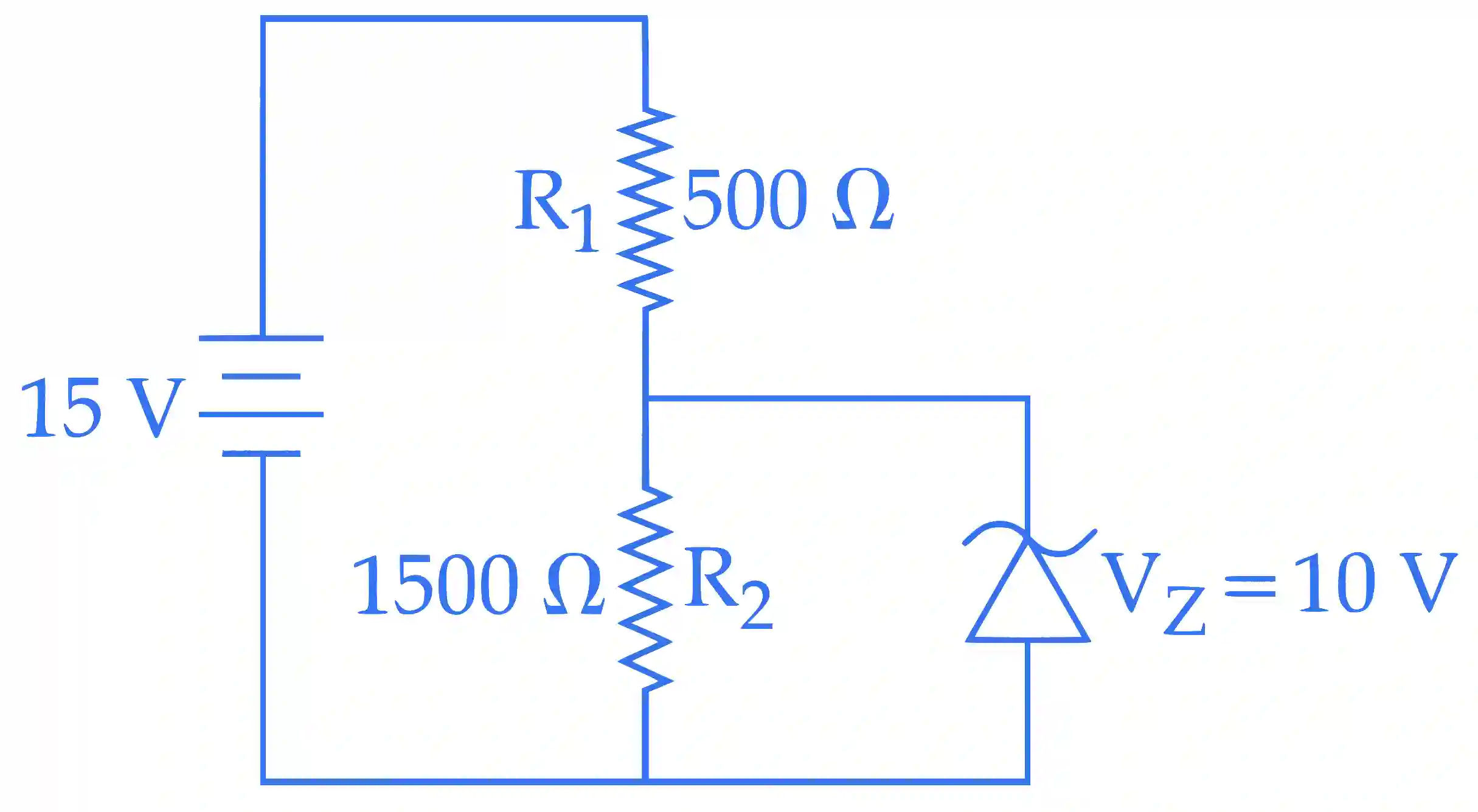

JEE Main 2018 (Online) 16th April Morning Slot Physics - Semiconductor Question 174 English

JEE Main 2018 (Online) 16th April Morning Slot Physics - Semiconductor Question 174 English

Multiple Choice Options

A 5.5 mA
B 6.7 mA
C 2.5 mA
D 3.3 mA

Related Learning Resources & Exam Preparation

JEE Main PYQ Question Bank

Browse year-wise authentic previous years' questions with solutions

Authentic CBT Mock Tests

Simulate official exam environment with live timer and percentile scoring

Accepted Answer

Voltage across R₁ is given by $V_{R_{1}} = V - V_{Z} = 15 - 10 = 5 V$ .

Resistance $R_{1} = 500 Ω$

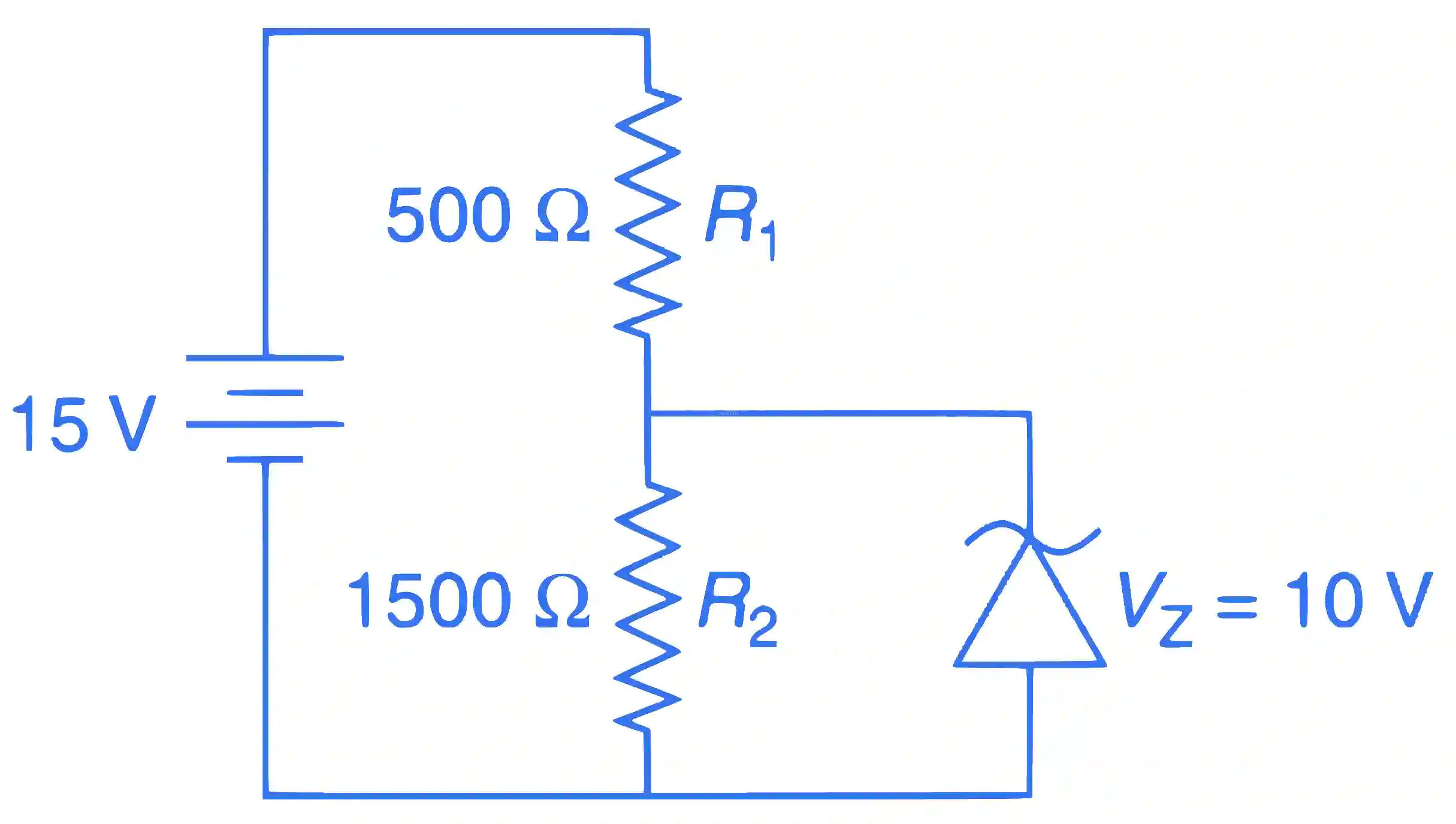

JEE Main 2018 (Online) 16th April Morning Slot Physics - Semiconductor Question 174 English Explanation

Therefore, current through R₁ is given by

$I_{R_{1}} = \frac{5 V}{500 Ω} = 0.01 A$

Now, current through R₂ is given by

$I_{R_{2}} = \frac{10 V}{1500 Ω} = 0.067 A$

Therefore, the current through Zener diode will be

$0.1 - 0.0067 = 0.0033 A = 3.3 m A$
