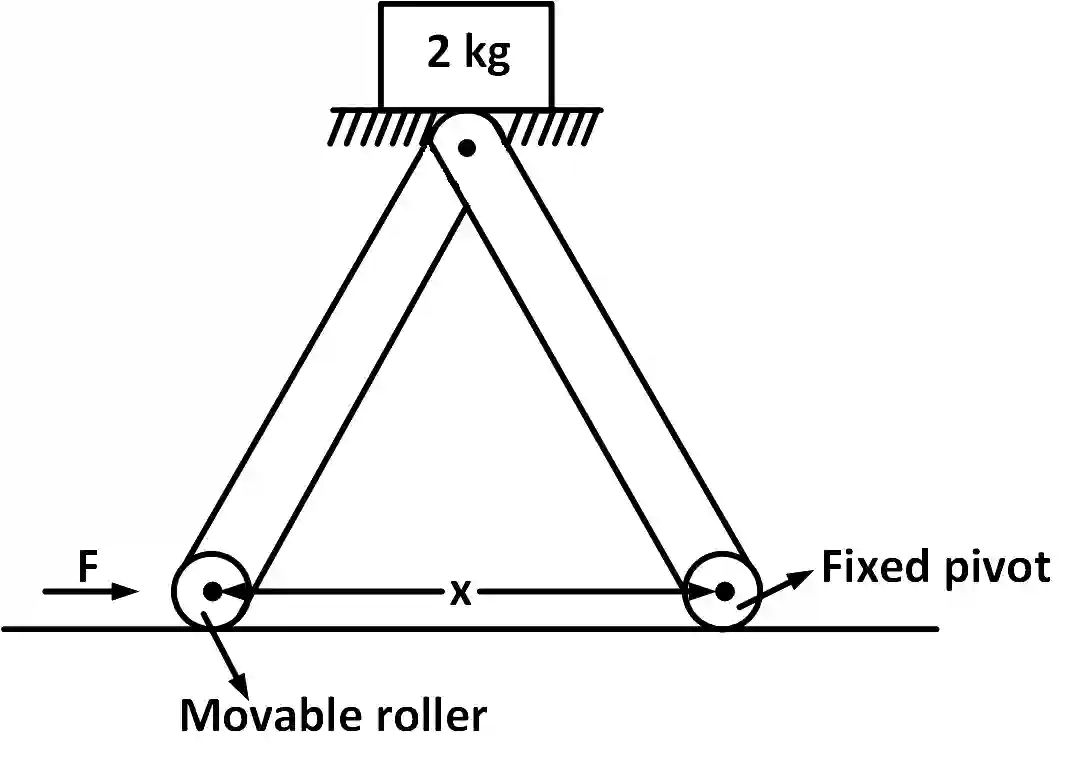

The machine as shown has 2 rods of length1 m connected by a pivot at the top. The end of one rod is connected to the floor by a stationary pivot and the end of the other rod has a roller that rolls along the floor in a slot. As the roller goes back and forth, a 2 kg weight moves up and down. If the roller is moving towards right at a constant speed, the weight moves up with a :
Multiple Choice Options
- A Constant speed
- B decreasing speed
- C increasing speed
- D speed which is th of that of the roller when the weight is 0.4 m above the ground
Step-by-Step Verified Solution
As the force F acts on the horizontal direction, the vertical force acting on the rod to raise the weight to move upwards happens with decreasing speed.
