A body is thrown vertically upwards. Which one of the following graphs correctly represent the velocity vs time?

Multiple Choice Options

  • A https://ik.imagekit.io/novatra/photos/0e9495fd093e268ac16bf24c851d8f13ac4120109321b34be790109cc0734855.webp
  • B https://ik.imagekit.io/novatra/photos/c729987c1a2f4900fca643f161f45610a318da6f4aba9215080735258b7a9ac2.webp
  • C https://ik.imagekit.io/novatra/photos/364ecea8e9c1db450bf7ec7a4456ab111fa4040140f629bd601e99e61ece31b4.webp
  • D https://ik.imagekit.io/novatra/photos/ca8e6edbb4f3ebdf667015c115d87ce28efc217d4efd9dae490a269ccf19225f.webp

Step-by-Step Verified Solution

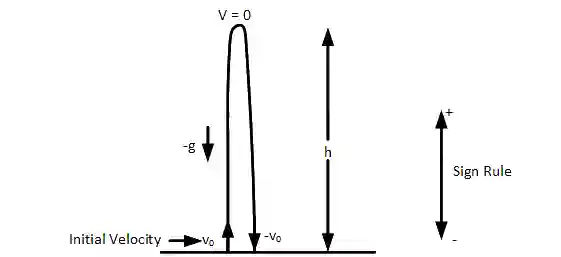

Motion of the particle is shown below

JEE Main 2017 (Offline) Physics - Motion in a Straight Line Question 97 English Explanation

Initially speed of the particle is maximum(v0) and at heigth h velocity will become zero, then particle will move downward and velocity will increase gradually and become maximum when it reaches the ground. And acceleration in this entire motion will be -g, so slope of v - t will be same and negative.

So only Option (D) will be correct.
