QJEEM16Ph32b7: JEE Main 2016 Physics - Class 12 JEEM16Ph32b7 Solution: To get an output of 1 from the circuit shown in figure the…

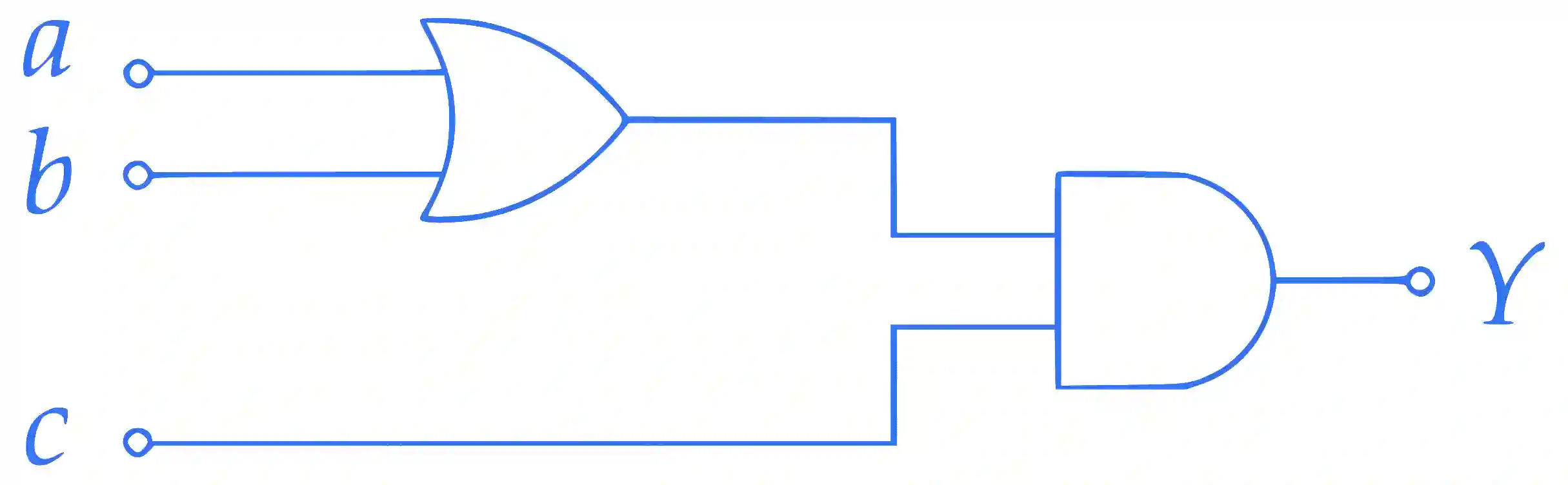

To get an output of 1 from the circuit shown in figure the input must be :
Multiple Choice Options
- A a = 0, b = 1, c = 0
- B a = 1, b = 0, c = 0
- C a = 1, b = 0, c = 1
- D a = 0, b = 0, c = 1
Step-by-Step Verified Solution
Here,
Y = c . (a + b)
Now Y = 1 when,
c = 1 and (a = 1, b = 0 or a = 0, b = 1 or a = 1, b = 1)
Y = c . (a + b)
Now Y = 1 when,
c = 1 and (a = 1, b = 0 or a = 0, b = 1 or a = 1, b = 1)
