QJEEM14Ph1d67: JEE Main 2014 Physics - Class 12 JEEM14Ph1d67 Solution: The forward biased diode connection is:

The forward biased diode connection is:

Multiple Choice Options

  • A https://ik.imagekit.io/novatra/photos/00ca6b31eb8a36ff27ca3c5506658d5c12de0b989433af2c3f997f198837ce5e.webp
  • B https://ik.imagekit.io/novatra/photos/4e8b459abb54cf771da191ce1db432620e03e1dacb672912d2f411eb353d9def.webp
  • C https://ik.imagekit.io/novatra/photos/84a51edc45c079326536388770733dd5e2974c10a444fe6e626f17e57483dcad.webp
  • D https://ik.imagekit.io/novatra/photos/57ee2c0bdc394d6c2be9b7636a541765ecec4dc51b90a085e8e97b4f5c19b8ef.webp

Step-by-Step Verified Solution

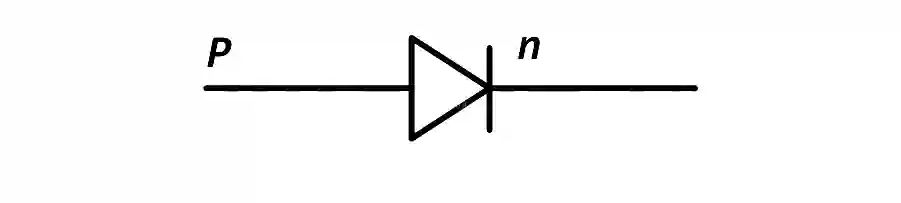

JEE Main 2014 (Offline) Physics - Semiconductor Question 179 English Explanation

For forward bias, p-side must be at higher potential than n-side. ΔV=(+)Ve
