Question

Verified Solution • 2025–26 Session moderate

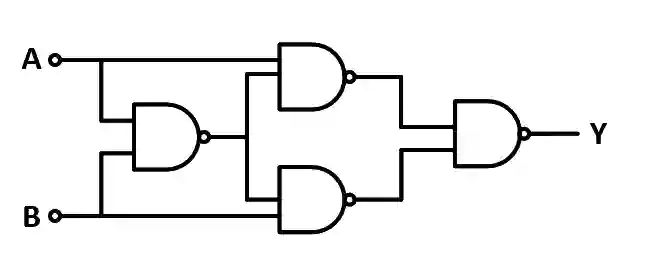

Truth table for system of four

N A N D

gates as shown in figure is: AIEEE 2012 Physics - Semiconductor Question 183 English

A https://ik.imagekit.io/novatra/photos/31a918ff8bc63cc348f8440c20d6defe5ca21001b4b4040bf7d2458f3f784727.webp
B https://ik.imagekit.io/novatra/photos/0e8af2daff3fc8726ed5c6b0bc2c425a9443b01e4fb8fd0a3b2c7a5611d25699.webp
C https://ik.imagekit.io/novatra/photos/59880d611d9a5e808fa44cf95c7ac661471bdfd7edf93bb712daa3c840d551dc.webp
D https://ik.imagekit.io/novatra/photos/54ab0c7d1e43b5792339dccdcec1bd6240d5e142eb640983244befd153b788d6.webp

Accepted Answer

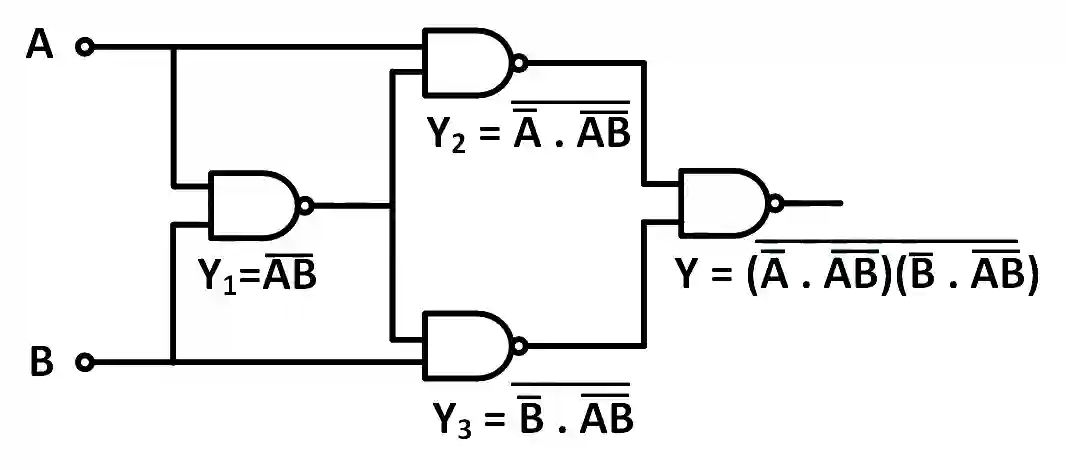

By expanding this Boolean expression

Y = A . \overset{―}{B} + B . \overset{―}{A}

Thus the truth table for this expression should be

(1) .
