QJEEM02Chd068: JEE Main 2002 Chemistry - Class 11 JEEM02Chd068 Solution: A square planar complex is formed by hybridisation of which…
A square planar complex is formed by hybridisation of which atomic orbitals ?
Multiple Choice Options
- A s, px, py, dxy
- B s, px, py, dx2 - y2
- C s, px, py, dz2
- D s, px, py, dyz
Step-by-Step Verified Solution
Hybridization of square planar complex is dsp2 .

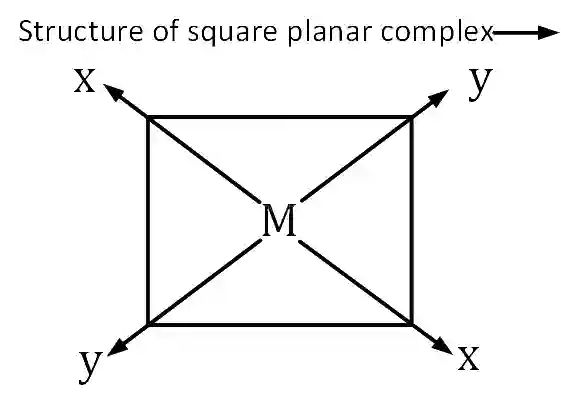

In square planar complex all 4 surrounding atoms and central atom are in the same plane and let this plane is x y plane. As it is dsp2 hybridized, so it has 1 d orbital, 1 s orbital and 2 p orbital.
s orbital is non-directional, so we just write it as s.

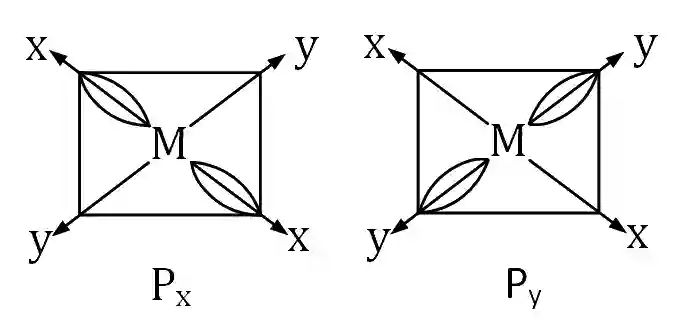

In px the two lobes are along x-axis and in py two lobes are along y-axis

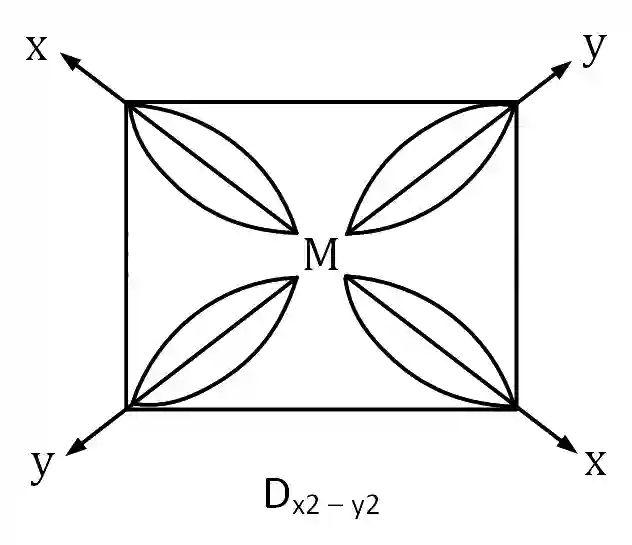

One d orbital is dx2 y2, it means out of four lobes of d orbital two along x-axis and two along y-axis.
In square planar complex all 4 surrounding atoms and central atom are in the same plane and let this plane is x y plane. As it is dsp2 hybridized, so it has 1 d orbital, 1 s orbital and 2 p orbital.
s orbital is non-directional, so we just write it as s.
In px the two lobes are along x-axis and in py two lobes are along y-axis
One d orbital is dx2 y2, it means out of four lobes of d orbital two along x-axis and two along y-axis.
