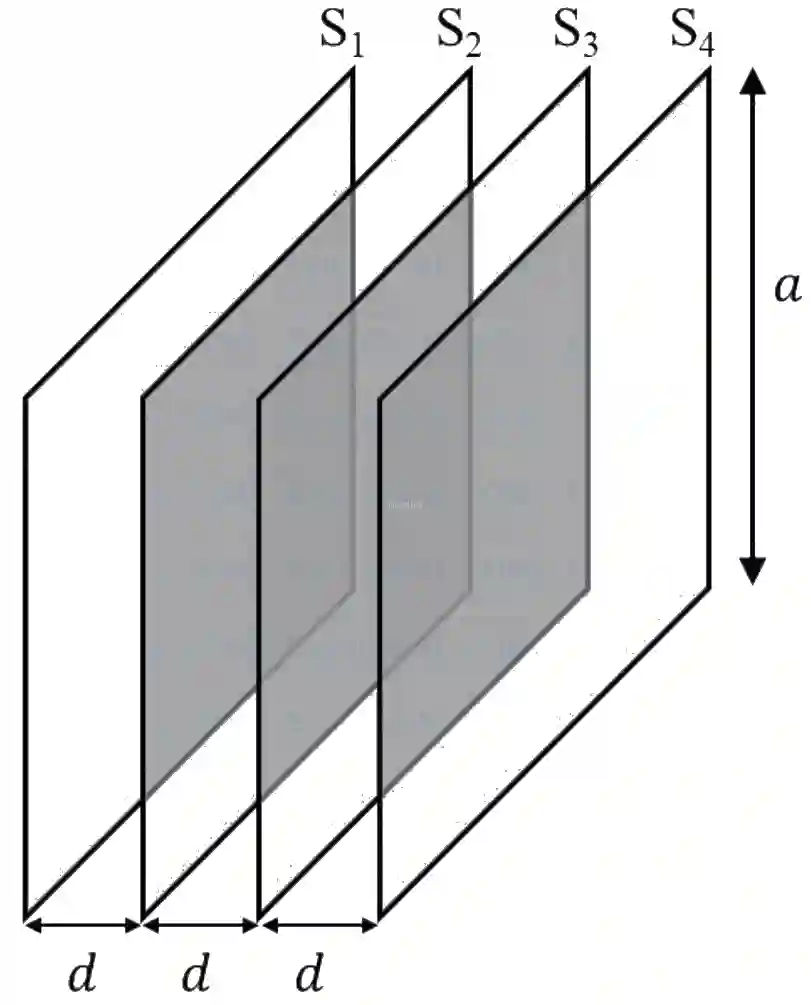

Four identical thin, square metal sheets, $S_1, S_2, S_3$ and $S_4$ , each of side $a$ are kept parallel to each other with equal distance $d(\ll a)$ between them, as shown in the figure. Let ${C_0} = {{{\varepsilon _0}{a^2}} \over d}$ , where $\varepsilon_0$ is the permittivity of free space.

JEE Advanced 2024 Paper 1 Online Physics - Capacitor Question 1 English

Match the quantities mentioned in List-I with their values in List-II and choose the correct option.

List-I	List-II
(P) The capacitance between $S_1$ and $S_4$ , with $S_2$ and $S_3$ not connected, is	(1) $3C_0$
(Q) The capacitance between $S_1$ and $S_4$ , with $S_2$ shorted to $S_3$ , is	(2) $\frac{C_0}{2}$
(R) The capacitance between $S_1$ and $S_3$ , with $S_2$ shorted to $S_4$ , is	(3) $\frac{C_0}{3}$
(S) The capacitance between $S_1$ and $S_2$ , with $S_3$ shorted to $S_1$ , and $S_2$ shorted to $S_4$ , is	(4) $\frac{2C_0}{3}$
	(5) $2C_0$

Multiple Choice Options

A $\mathrm{P} \rightarrow 3 ; \mathrm{Q} \rightarrow 2 ; \mathrm{R} \rightarrow 4 ; \mathrm{S} \rightarrow 5$
B $\mathrm{P} \rightarrow 2 ; \mathrm{Q} \rightarrow 3 ; \mathrm{R} \rightarrow 2 ; \mathrm{S} \rightarrow 1$
C $\mathrm{P} \rightarrow 3 ; \mathrm{Q} \rightarrow 2 ; \mathrm{R} \rightarrow 4 ; \mathrm{S} \rightarrow 1$
D $\mathrm{P} \rightarrow 3 ; \mathrm{Q} \rightarrow 2 ; \mathrm{R} \rightarrow 2 ; \mathrm{S} \rightarrow 5$

Related Learning Resources & Exam Preparation

JEE Advanced PYQ Question Bank

Browse year-wise authentic previous years' questions with solutions

Authentic CBT Mock Tests

Simulate official exam environment with live timer and percentile scoring

Accepted Answer

Step-by-Step Verified Solution

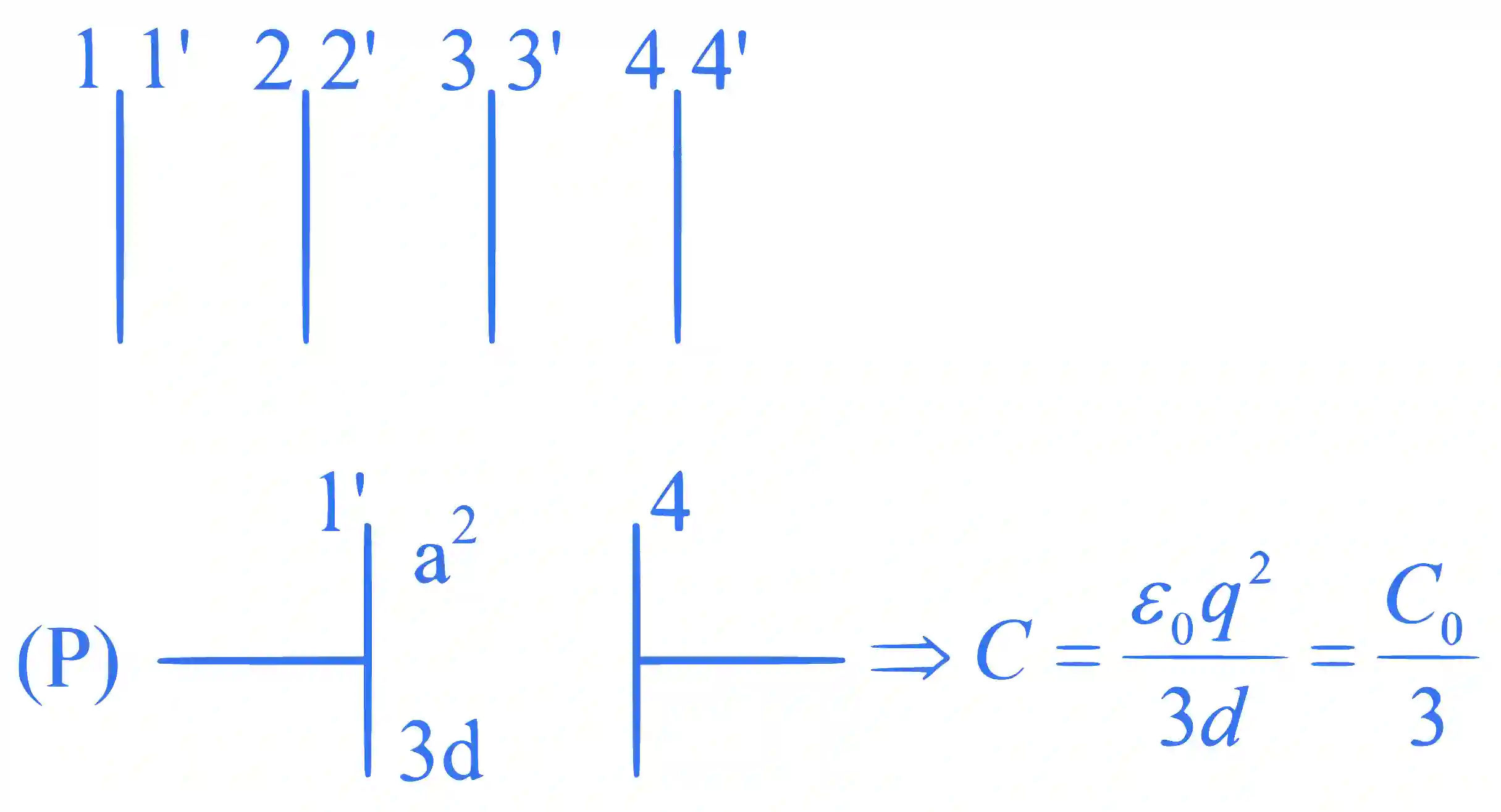

JEE Advanced 2024 Paper 1 Online Physics - Capacitor Question 1 English Explanation 1

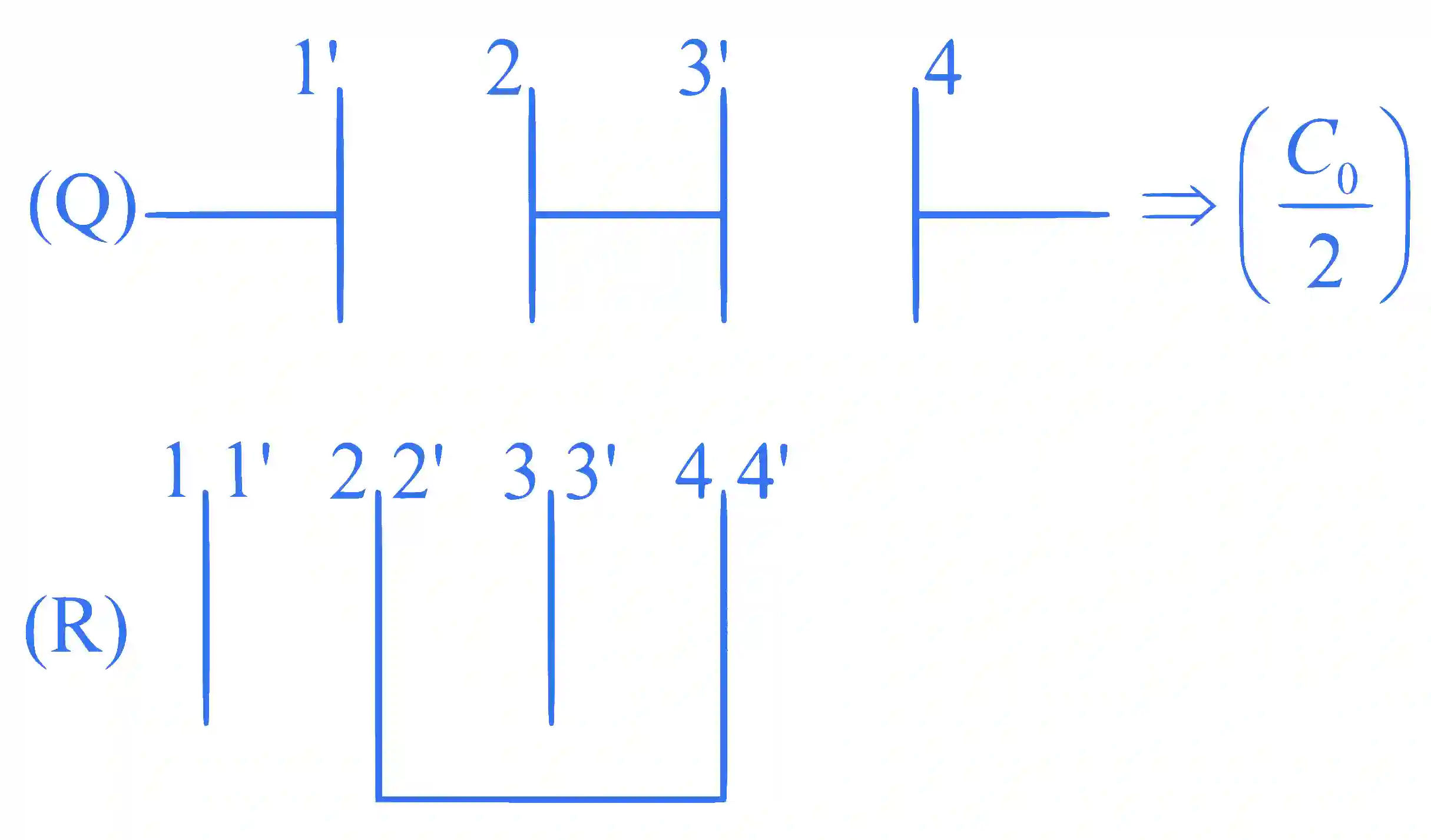

JEE Advanced 2024 Paper 1 Online Physics - Capacitor Question 1 English Explanation 2

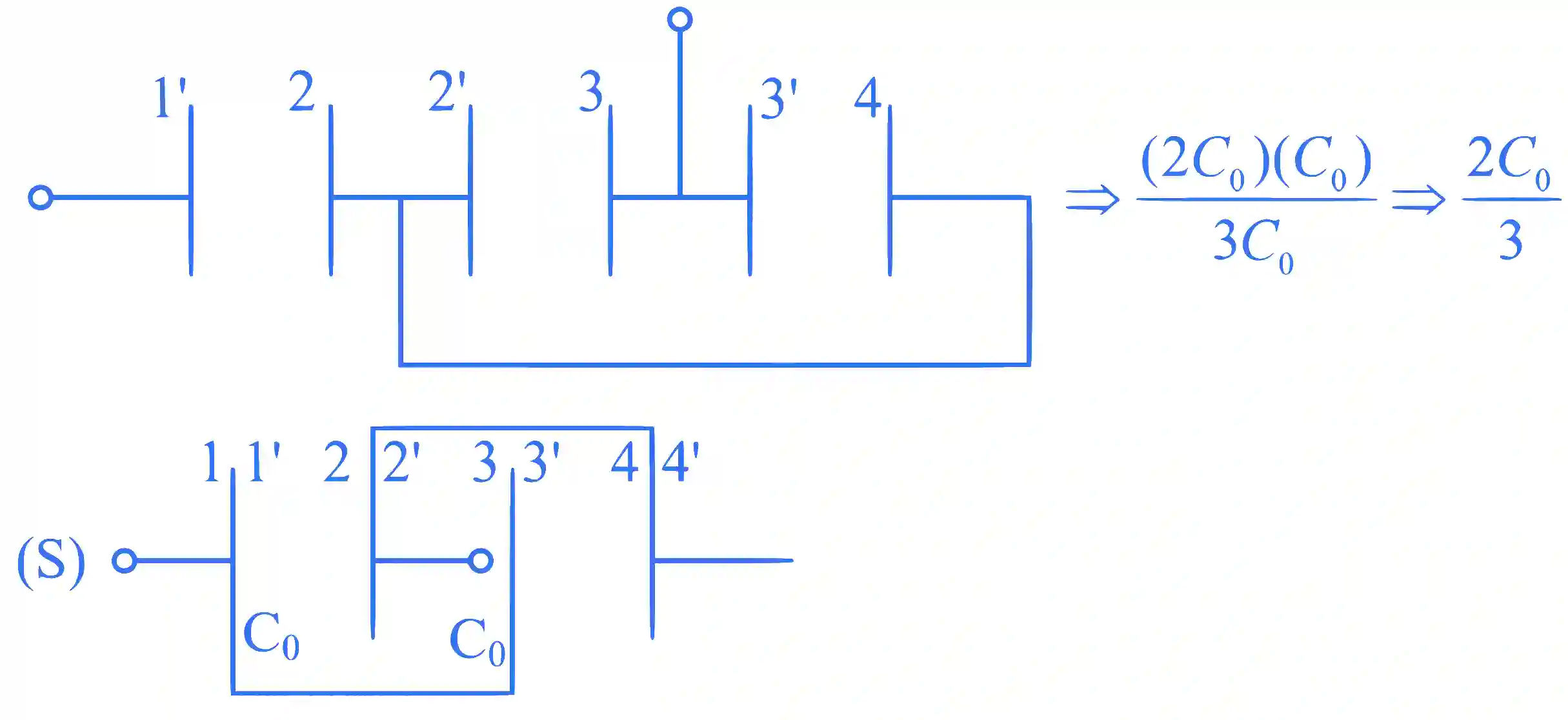

JEE Advanced 2024 Paper 1 Online Physics - Capacitor Question 1 English Explanation 3

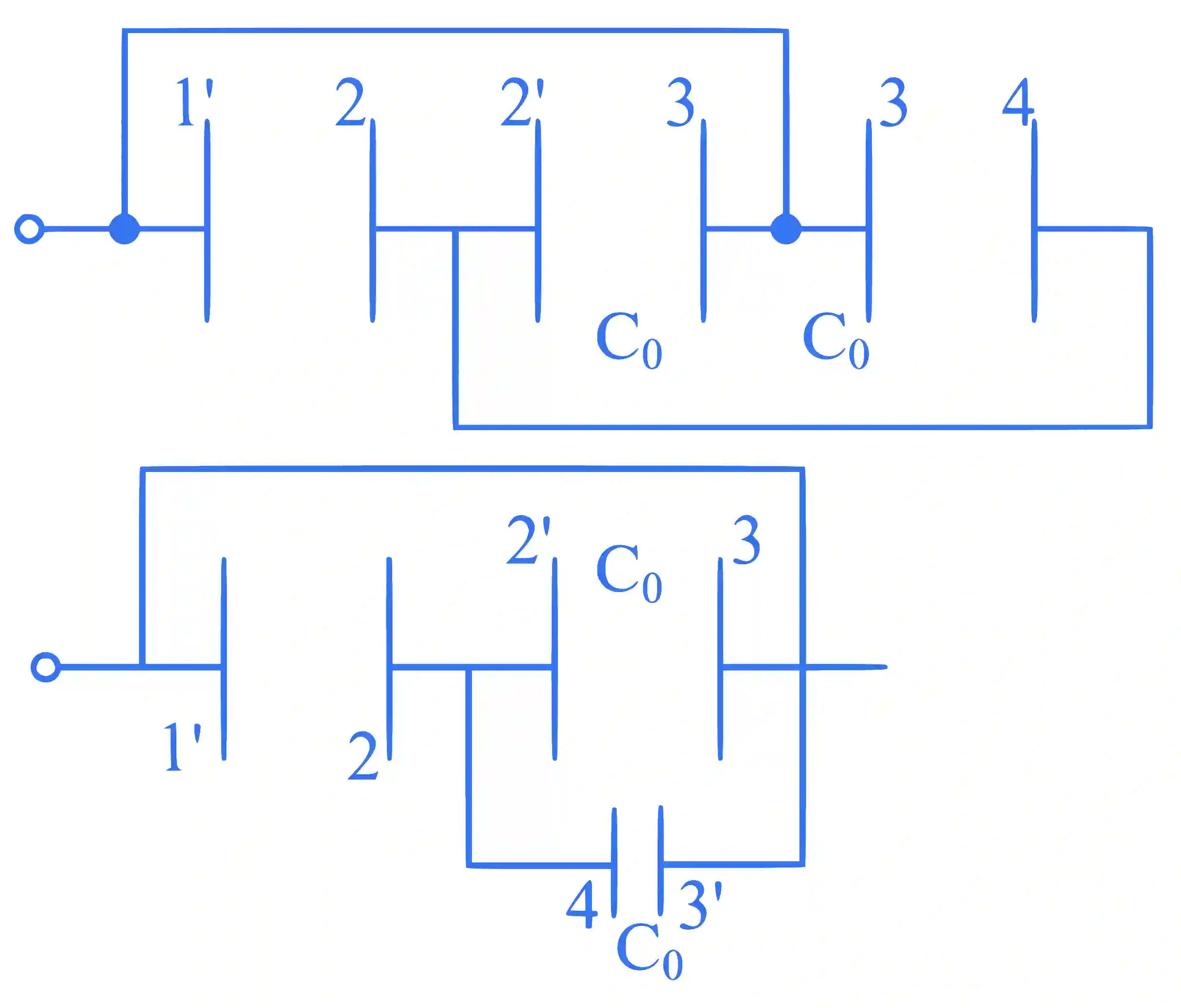

JEE Advanced 2024 Paper 1 Online Physics - Capacitor Question 1 English Explanation 4

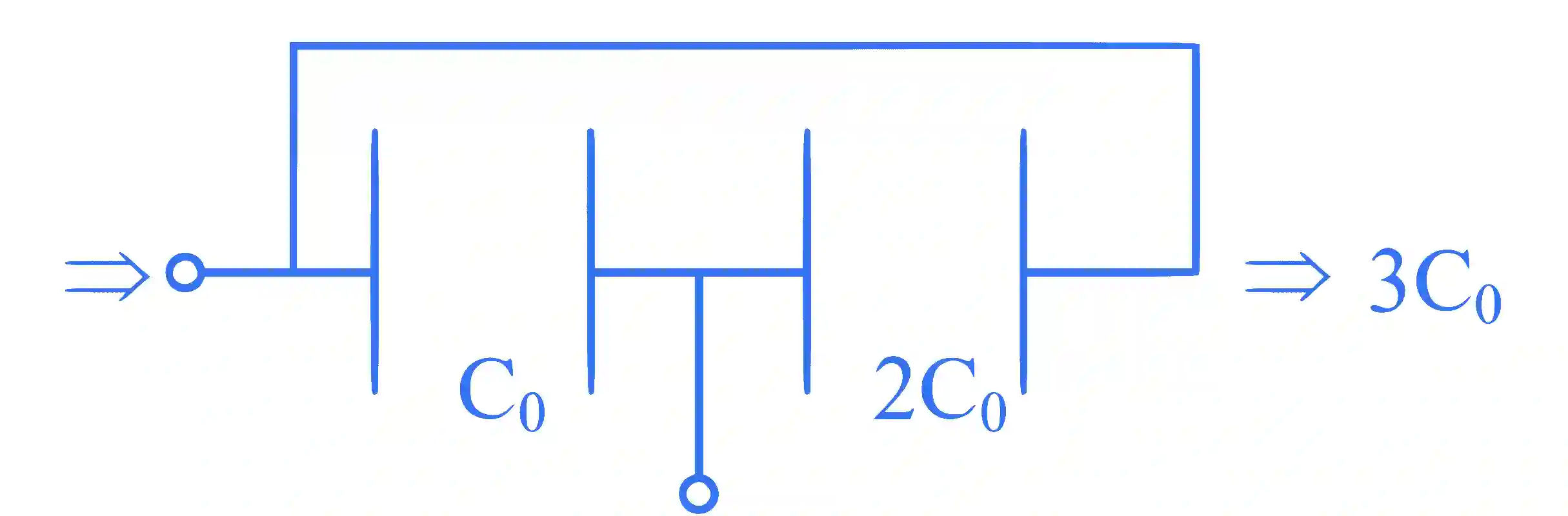

JEE Advanced 2024 Paper 1 Online Physics - Capacitor Question 1 English Explanation 5
