Question

Verified Solution • 2025–26 Session moderate

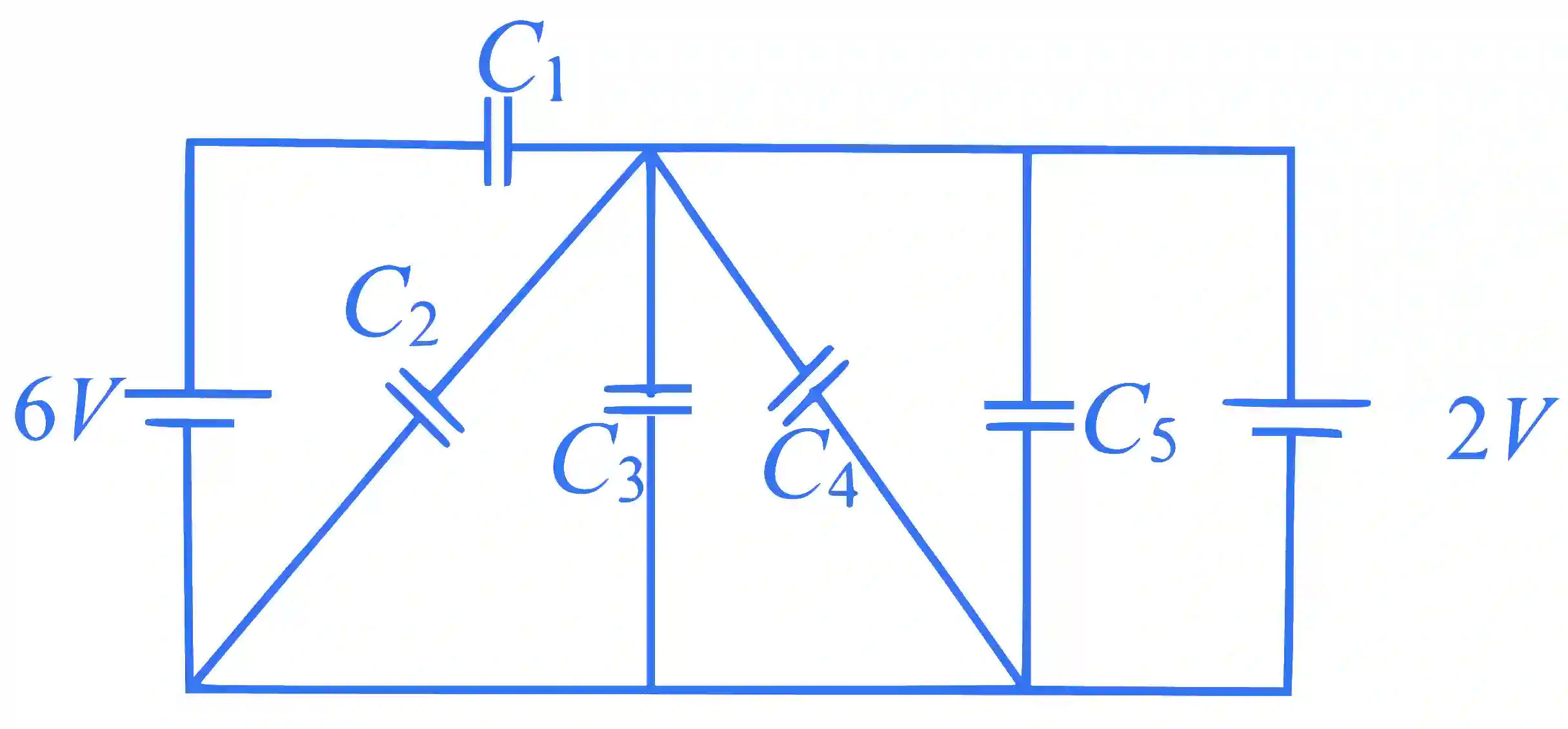

In the following circuit $C_{1}=12 \mu F, C_{2}=C_{3}=4 \mu F$ and $C_{4}=C_{5}=2 \mu F$ . The charge stored in $C_{3}$ is ____________ $\mu C$ .

JEE Advanced 2022 Paper 1 Online Physics - Current Electricity Question 7 English

Accepted Answer

From circuit given, Potential difference across

C_{3}

is

2 \mathrm{~V}

(constant)

\therefore Q_{3}=2 \times 4 \mu \mathrm{C}

= 8 μ C
