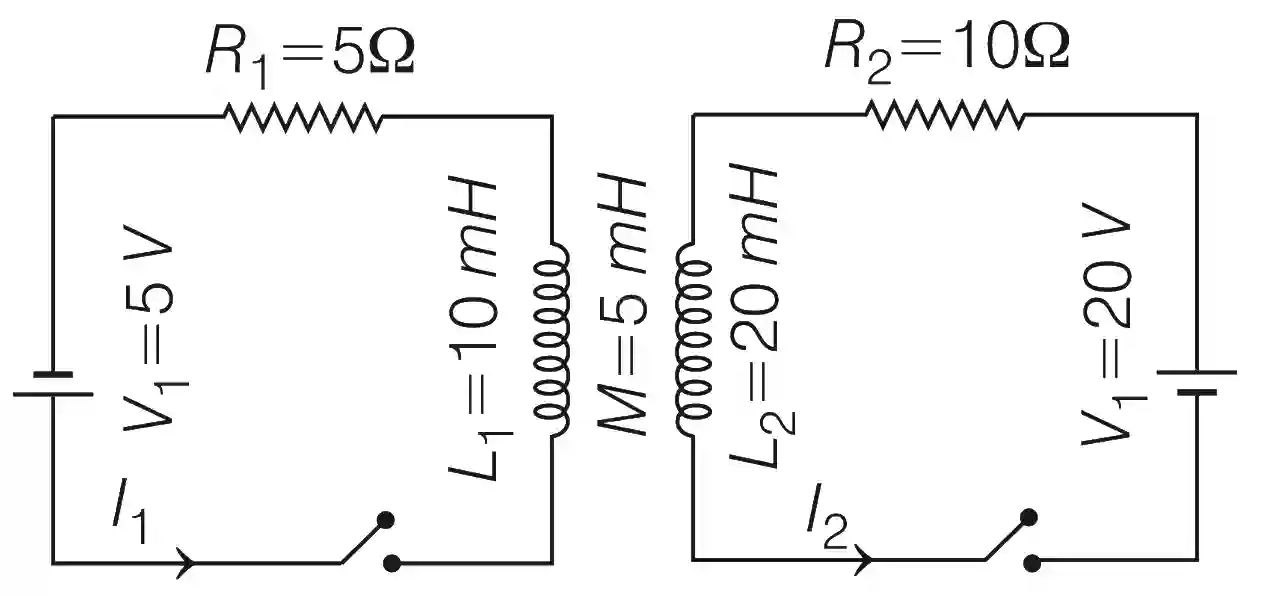

The inductors of two LR circuits are placed next to each other, as shown in the figure. The values of the self-inductance of the inductors, resistors, mutual-inductance and applied voltages are specified in the given circuit. After both the switches are closed simultaneously, the total work done by the batteries against the induced EMF in the inductors by the time the currents reach their steady state values is _________ mJ.

JEE Advanced 2020 Paper 2 Offline Physics - Electromagnetic Induction Question 9 English

Related Learning Resources & Exam Preparation

JEE Advanced PYQ Question Bank

Browse year-wise authentic previous years' questions with solutions

Authentic CBT Mock Tests

Simulate official exam environment with live timer and percentile scoring

Accepted Answer

Mutual inductance is producing flux in same direction as self-inductance.

∴

U = \frac{1}{2} L_{1} I_{1}^{2} + \frac{1}{2} L_{2} I_{2}^{2} + M I_{1} I_{2}

\Rightarrow U = \frac{1}{2} \times (10 \times 10^{- 3}) 1^{2} + \frac{1}{2} \times (20 \times 10^{- 3}) \times 2^{2} + (5 \times 10^{- 3}) \times 1 \times 2

= 55

mJ
