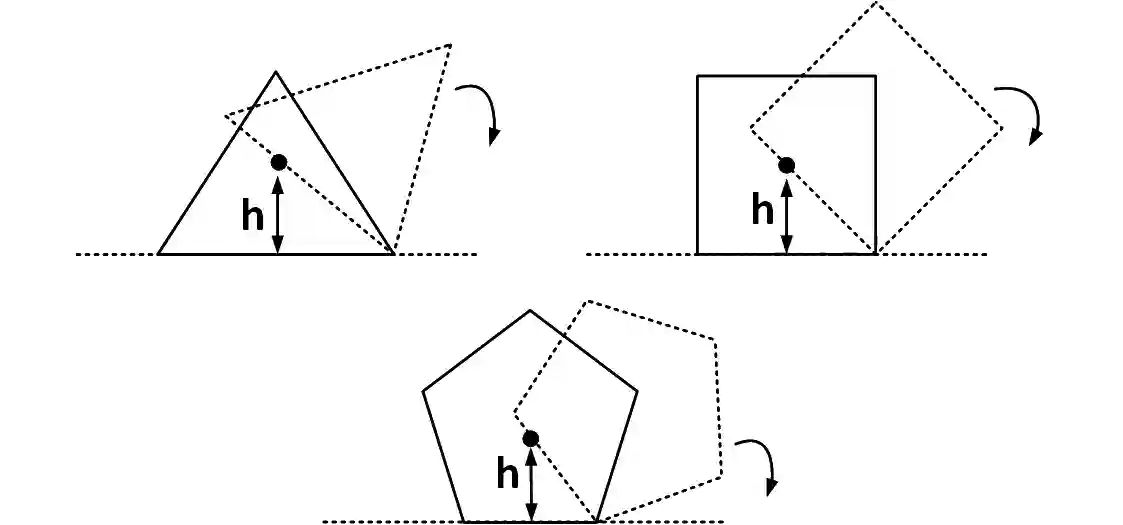

QJEEAdv17Pha62e: JEE Advanced 2017 Physics - Class 11 JEEAdv17Pha62e Solution: Consider regular polygons with number of sides as shown in the…

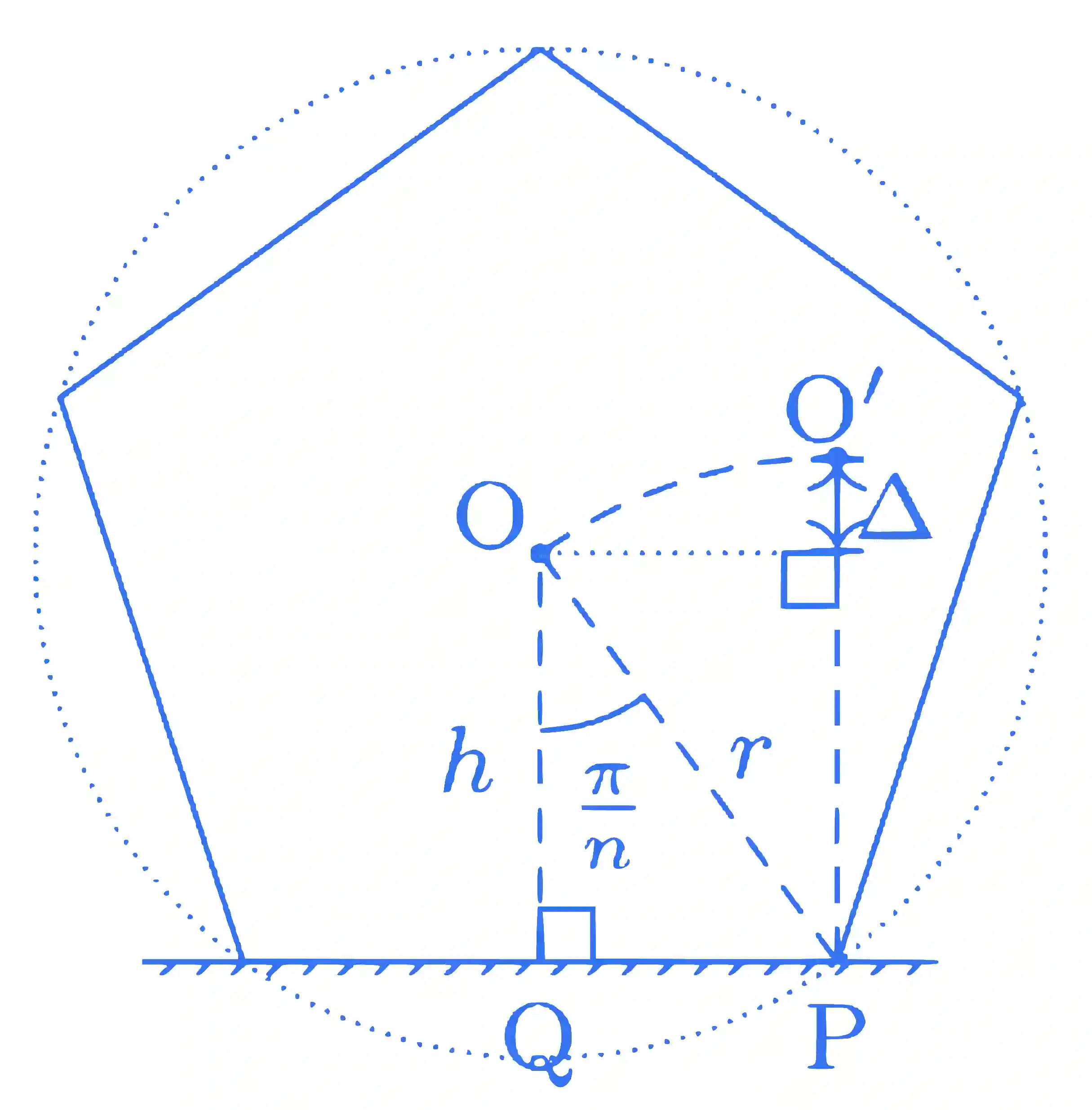

Let n be the number of sides of a regular polygon. By symmetry, its centre of mass O will be equidistant from each vertex i.e., it lies at the centre of the circumscribed circle. Let r be the radius of circumscribed circle and h be the perpendicular distance of O from any side (see figure). The angle subtended by any side on the centre O is 2 $\pi$ /n and $\angle$ PON = $\pi$ /n.

When polygon rolls about the vertex P (without slipping or sliding), the point O moves in a circle of radius r centred at P. The point O reaches the maximum height (point O' in the figure) when PO' is perpendicular to PQ. Thus, the maximum increase in height of the locus of the centre of mass O is given by

$\Delta = r - h = {h \over {\cos (\pi /n)}} - h = h\left( {{1 \over {\cos (\pi /n)}} - 1} \right)$ .
