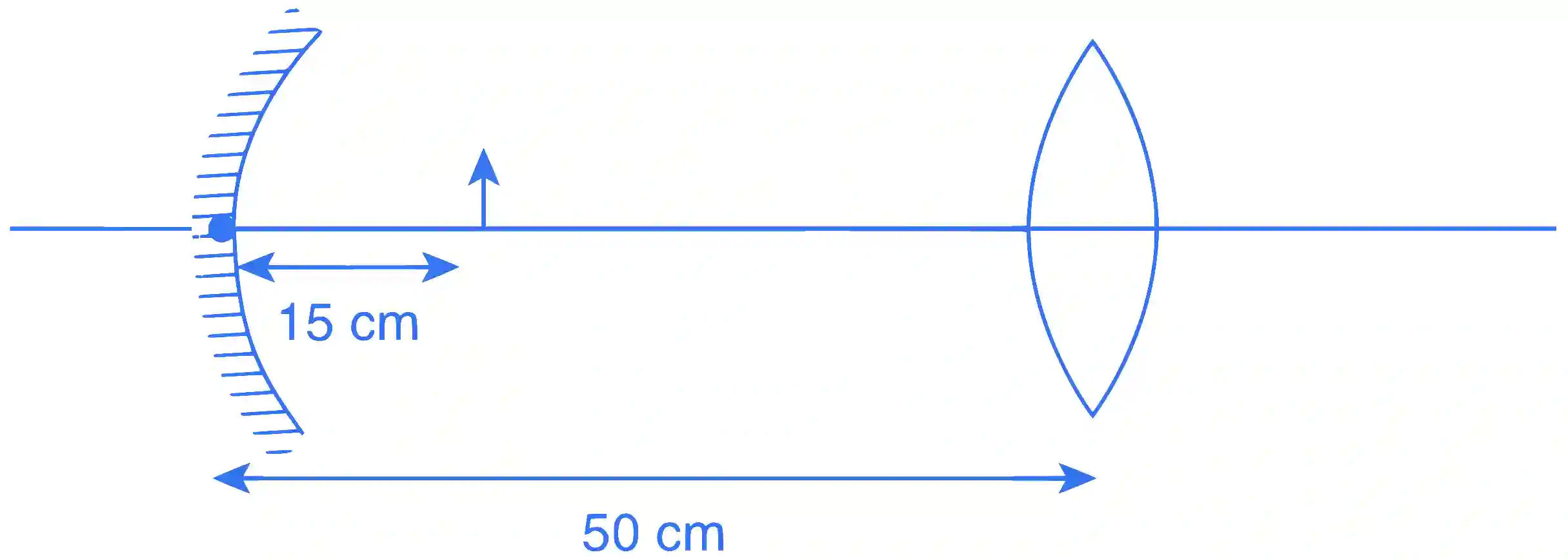

QJEEAdv15Ph23f7: JEE Advanced 2015 Physics - Class 12 JEEAdv15Ph23f7 Solution: Consider a concave mirror and a convex lens (refractive index = …

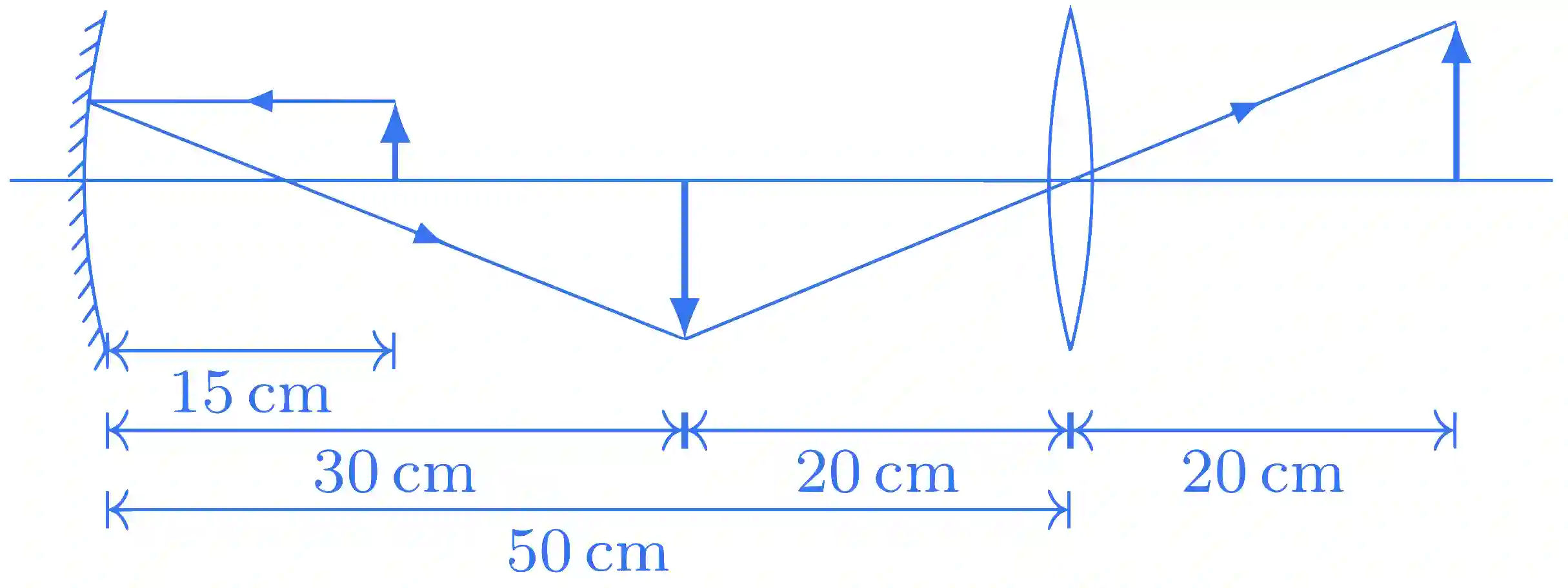

Case I

Reflection from mirror

${1 \over f} = {1 \over v} + {1 \over u} \Rightarrow {1 \over { - 10}} = {1 \over v} + {1 \over { - 15}}$

$\Rightarrow v = - 30$

For lens ${1 \over f} = {1 \over v} - {1 \over u}$

${1 \over {10}} = {1 \over v} - {1 \over { - 20}}$

$v = 20$

$\left| {{M_1}} \right| = \left| {{{{v_1}} \over {{u_1}}}} \right|\left| {{{{v_2}} \over {{u_2}}}} \right|$

$= \left( {{{30} \over {15}}} \right)\left( {{{20} \over {20}}} \right)$

$= 2 \times 1 = 2$ (in air)

Case II :

Now, consider the setup placed in a medium of refractive index ${\mu {'_1}}$ = 7/6. The focal length of the mirror does not change. Thus, the distance of the image formed by the mirror and its magnification does not change. The focal length of the lens changes. The refractive index of the lens material is $\mu$ ₂ = 1.5. Apply lens maker's formula to get the new focal length of the lens

${1 \over {f'}} = \left( {{{{\mu _2} - \mu {'_1}} \over {\mu {'_1}}}} \right)\left[ {{1 \over {{R_1}}} - {1 \over {{R_2}}}} \right]$

$= {{{\mu _2} - \mu {'_1}} \over {\mu {'_1}}}{{{\mu _1}} \over {{\mu _2} - {\mu _1}}}{{{\mu _2} - {\mu _1}} \over {{\mu _1}}}\left[ {{1 \over {{R_1}}} - {1 \over {{R_2}}}} \right]$

$= \left( {{{{\mu _2} - \mu {'_1}} \over {{\mu _2} - {\mu _1}}}} \right)\left( {{{{\mu _1}} \over {\mu {'_1}}}} \right){1 \over f}$

$= \left( {{{1.5 - 7/6} \over {1.5 - 1}}} \right)\left( {{1 \over {7/6}}} \right){1 \over {10}} = {2 \over {35}}$ . ..... (1)

Again using lens formula, ${1 \over v} - {1 \over u} = {1 \over {{f_l}'}}$

${1 \over v} - {1 \over { - 20}} = {2 \over {35}} \Rightarrow {1 \over v} = {2 \over {35}} - {1 \over {20}} = {1 \over {140}}$

$\therefore$ v = 140 cm

Magnification, ${m_2}' = {v \over u} = {{140} \over { - 20}} = - 7$

Magnification produced by the combination,

${M_2} = {m_1} \times {m_2}' = ( - 2) \times ( - 7) = 14$

$\therefore$ $\left| {{{{M_2}} \over {{M_1}}}} \right| = {{14} \over 2} = 7$
